Home / Hardware / Washers /750-0000-5/16 Thredseal
Main Image

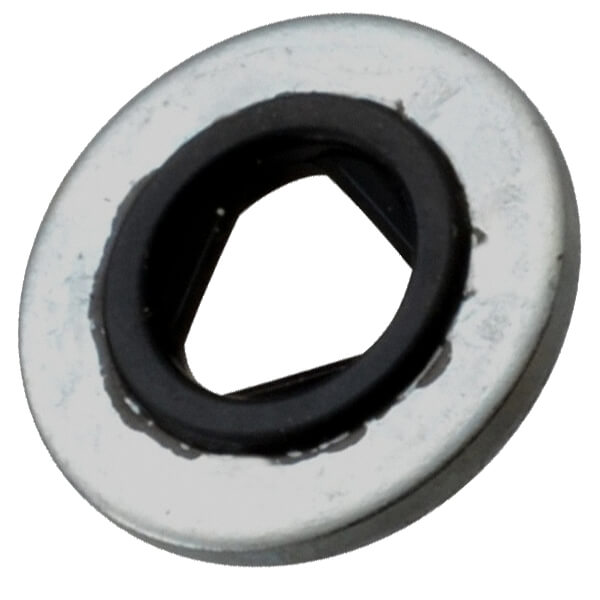

750-0000-5/16 Thredseal

0 Reviews 1 Answered Question
$4.95/Piece
Price Includes GST
Quantity
Add to Wishlist
Part# 04-03845
MFR Model# 750-0000-5/16

Overview

ThredSeals are safe and reliable seals for threaded devices. They are self-centering and non-directional, designed to seal directly against threads, without any special requirements. ThredSeals can also offer considerable savings because they enable the use of low cost standard fasteners and full threaded fittings. They are easy to assemble and do not require special skills or tooling; simply push them on with a slight twisting motion and tighten the fastener.

Features

  • Unlike other cure-in-place thread sealing methods, ThredSeals are mechanical, not chemical in application. They can be easily assembled and removed, do not require set up cure time, and are easily parted from contacting surfaces without special tools or chemicals, providing easy access to the sealed areas. ThredSeals seal at the recommended pressure and temperature levels by utilizing the bolt threads to form a contained elastomeric dam. If the elastomeric element is not damaged to the
  • extent of tearing or rupturing, the seals are reusable. Close visual inspection after each removal is recommended, and the use of cover washers will reduce the possibility of tears or breaks in the rubber, as well as provide adequate seating surfaces for the nut.

Specifications

  • Seal Compound: Commercial Standard Nitrile,
  • Retainer Material: Low-Carbon Steel, Commercial Grade
  • Finish: Cadmium Plated, Commercial Grade
  • 5/16 Fastener size: 18 UNC TPI, 24 UNF TPI.
  • OD ±.010: 0.687
  • Retainer Thickness ± .005: .064

Benefits

  • Effective sealing for standard fastener sizes
  • Self-centering
  • Non-directional
  • Easy to assemble and disassemble
  • Readily available in standard fastener sizes
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: will the 5/16 Threadseal work on a 1/4 bolt?

No, this is not designed to work on 1/4 thread.
