Aerospace Logic Manifold Pressure & Fuel Flow Kit

0 Reviews 0 Answered Questions
From $1593.00 to $1612.00
Prices below incude GST
Main Image
Main Image
Main Image
Description Part Number Price Buy
Aerospace Logic MF200K30 Manifold Pressure Fuel Flow 30Gph
10-05176
$1752.30
Quantity
Aerospace Logic Manifold Pressure And Fuel Flow 60Gph
10-05518
$1773.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

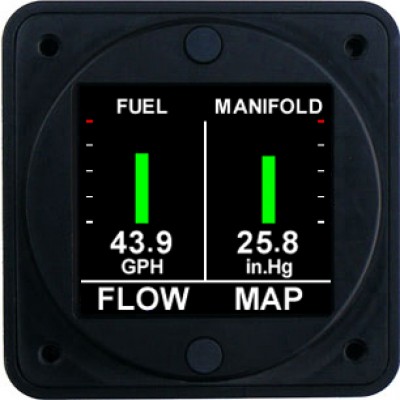

The MF200 is an advanced, next generation manifold pressure and fuel flow combination instrument for flow rates up to 30-60gph.

Manifold pressure functionality is TSO'd and meets the pressure accuracy requirements of SAE AS8042.

Fuel flow functionality is TSO'd and meets the accuracy requirements of TSO C44c.

Functional displays include:
Primary - Real-Time analog data depiction and digital value display for both manifold pressure and fuel flow
Secondary - Real-Time analog data depiction and digital value display for both manifold pressure and fuel flow as well as fuel used
Graphical trend display of manifold pressure and fuel flow data

These are TSO'd and STC'd as a primary replacement instrument under all flight conditions (day/night VFR and IFR).

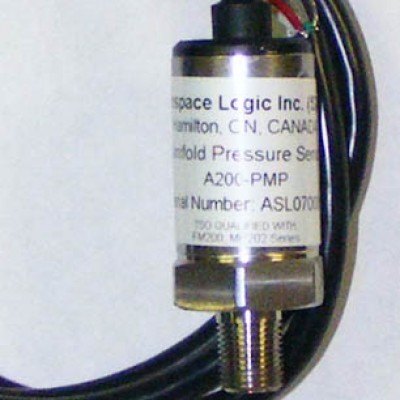

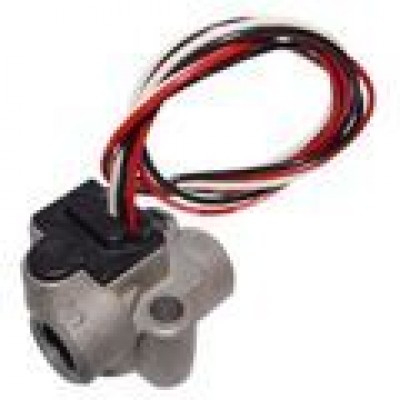

These kits include both an A200-PMP manifold pressure sensor and a A200-201A-6 fuel flow sensor for full functionality.

Features

    Certification / Compliance:
    TSO C44bCanadian STCFAA STCCertified as primary replacement
    SoftwareDO-178B
    DC Power Source
    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
    Operating Temperature
    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
    Signal Input
    Manifold Pressure: 0.5V to 3.0V
    Fuel Flow: 5V pulse width modulated
    Display Units
    Manifold Pressure: 0.0 inHg to 50.0 inHg
    Fuel Flow: 0.6 to 30-60gph
    Fuel Used: 0.6 to 999.9 gallons
    Accuracy
    Manifold Pressure: AS8042 +/- 0.1inHg
    Fuel Flow: +/- 0.1gph
    Display
    Sunlight readable LCD176 X 192 display pixels65,535 colors
    Annunciator Output
    100mA sink with reverse EMF protection
    RS-232 Data
    Output 1 second per full sequence at 57.6K bps (8/N/2/N)
    Interface Connector
    DB-25
    Software Functionality
    Primary Display: Fuel level in the tank
    Trend Graph: Graphic display of level vs time

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum

Reviews

Submit a Review

Q&A

Submit
