Aerospace Logic Tm202 Dual Tachometer Kit

0 Reviews 3 Answered Questions
From $1542.00 to $1644.00
Prices below incude GST
Main Image
Main Image
Description Part Number Price Buy
Aerospace Logic TM202 Dual Tachometer Kit Bendix Single Mag
10-05179
$1696.20
Quantity
Aerospace Logic TM202 Dual Tachometer Kit Slick Magneto
10-05513
$1808.40
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Aerospace Logic AOG Expedite Available, additional charges will apply.

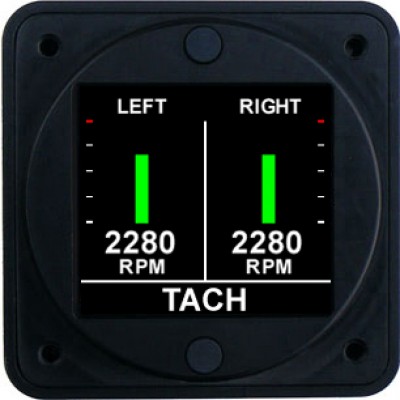

The TM202 is a precision dual tachometer that provides RPM data accurate to +/- 1RPM. It meets all the requirements of TSOC49b and provides the following functionality:
RPM indication in both analog and digital format for both engines, including support for engines that require a limited RPM range
Independent engine time recording
Trend graph function representing RPM vs. Time for both engines simultaneously

The instrument will work on all 4, 6 and 8 cylinder aircraft engines.

Features

    Certification / Compliance:
    TSO C44bCanadian STCFAA STCCertified as primary replacement
    SoftwareDO-178B
    DC Power Source
    Input voltage 6 to 36 VDCPower consumption 100mALoad dump tolerance +60VDirect spike tolerance +/- 60VCable spike tolerance > +/- 1KV
    Operating Temperature
    Constant operating -15ºC to +55ºCShort term operating (1hr) -40ºC to +70ºCStorage -55ºC to +85ºC
    Signal Input
    0-5V pulse width modulated square wave
    Display Range
    RPM 0 - 9000
    Accuracy
    AS404C +/- 1 RPM
    Display
    Sunlight readable LCD176 X 192 display pixels65,535 colors
    Annunciator Output
    100mA sink with reverse EMF protection
    RS-232 Data
    Output 1 second per full sequence at 57.6K bps (8/N/2/N)
    Interface Connector
    DB-25
    Software Functionality
    Primary: Manifold pressure and Tachometer
    Trend Graph: Graphic display of manifold pressure and tachometer data
    Engine Time: Display of engine time. Start time set at install

Specifications

  • Dimensions: 2.45” X 2.45” X 0.96”
  • Weight (excluding harness): 4.05 oz
  • Finish: Black anodized 6061 aluminum

Documents

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the Aerospace Logic TM202 Dual Tachometer Kit compatible with the Rotax 914 Engine?

Per Vendor: This is not compatible with the Rotax 914 Engines.

Q: What is the difference between the single magneto and dual magneto part numbers?

The single magneto gauge is designed to pull the information off of a single magneto system while the dual pulls off of a dual magneto system.

Q: Does the Dual TM202 work for a PA31 (Piper Navajo Chieftain) and include STC?

Yes the PA-31 is on the STC.
