Mitchell Modular Gauge Frames

From $87.75 to $142.90
Prices below incude GST
Total Gauge Capacity Configuration Part No. Price Buy
1 Gauge1 Gauge
10-02964
$96.53
Quantity
8 Gauges2 Wide 4 High
10-03915
$157.19
Quantity
6 Gauges1 Wide 6 High
10-02738
$127.33
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Modular gauge frames should be specified by part number plus identification of what function gauge (eg Oil Press., Ammeter, EGT) gets plugged in each location. Operating voltage of either 12 or 24 must also be specified. If operating voltage is not specified, 12 volt wiring will be provided.

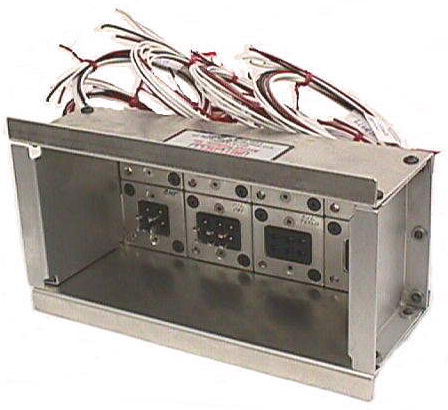

All mounting frames include backplane connectors pre-wired with labeled 18 inch leads
