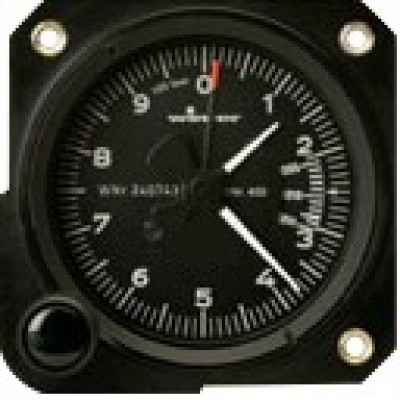

Winter 3 Inch Altimeters

From $404.00 to $749.00
Prices below incude GST
Description Part Number Price Buy
Winter 3 Altimeter Ebh 8034 0-5000 Foot Inhg
10-05633
$444.40
Quantity
Winter 3 Altimeter Ebh 8035 0-10000 Foot Inhg
10-05635
$823.90
Quantity
Winter 3 Altimeter Ebh 8038 0-5000 Foot Mb
10-05636
$444.40
Quantity
Winter 3 Altimeter Ebh 8039 0-10000 Foot Mb
10-05637
$471.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Altimeters measure static air pressure, which decreases with altitude.
The pressure-sensitive measuring element is a diaphragm capsule (aneroid capsule) which reacts to the effect of changing air pressure as the aircraft changes altitude. Tempered, aged copper-beryllium diaphragms ensure highly accurate readings. Diaphragm movement is transmitted to the instrument pointers by a linkage and gearwheels - the whole is insensitive to shock and vibration. A bimetal link compensates the effect of temperature change.

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these Winter Altimeters FAA Approved?

No, these gauges are intended for use in experimental aircraft only.

Q: What is the depth measurement of these altimeters please?

80MM or 3.15 inch

Q: Are these Winter altimeters illuminated for night view?

No. These are not illuminated.
