Cies Magnetic Fuel Level Sender Kits

0 Reviews 10 Answered Questions
From $1126.00 to $4598.00
Prices below incude GST
Main Image
Main Image
Vendor Part Number Description Part Number Price Buy
CC284022-C170-105Analog Sender Kit For Cessna C170
10-06510
$1365.10
Quantity
CC284022-C210-105Analog Sender Kit For Cessna C210
10-06514
$1365.10
Quantity
CC284022-C172-105Analog Sender For Cessna 172/175
10-06515
$1397.00
Quantity
CC284022-0608-101Digital Sender Kit For Cessna C210 Strut Wing Tip
10-06532
$1238.60
Quantity
CC284022-C150-101Digital Sender Kit For Cessna C150/152
10-06533
$1238.60
Quantity
CC284022-C170-101Digital Sender Kit For Cessna C170
10-06534
$1238.60
Quantity
CC284022-C177-101Digital Sender Kit For Cessna C177
10-06535
$1238.60
Quantity
CC284022-C210-101Digital Sender Kit For Cantilener Wing C210
10-06536
$1238.60
Quantity
CC284022-C172-101Digital Sender Kit For Cessna 172/175
10-06537
$1238.60
Quantity
CC284022-BTIP-101Digital Sender Kit For Osborne Tip Tank
10-06538
$1238.60
Quantity
CC284022-CESSNA-101Digital Sender Kit For Cessna C210, 182, 185, 206 Strut Wing
10-06539
$1248.50
Quantity
CC284022-CESSNA-105Analog Sender Kit For Cessna C210, 182, 185, 206 Strut Wing
10-07656
$1399.20
Quantity
CC284022-B55A-101Digital Sender Kit For Aux Tank B95
10-06540
$5028.10
Quantity
CC284022-B58-101Digital Sender Kit For B58
10-06541
$3790.60
Quantity
CC284022-T34-101Digital Sender Kit For Beechcraft 45/T-34
10-06542
$1238.60
Quantity
CC284022-M20CDE-101Digital Sender Kit For Mooney M20CDE
10-06545
$1259.50
Quantity
CC284022-M20FGJK-101Digital Sender Kit For Mooney M20FGJK
10-06546
$2526.70
Quantity
CC284022-M20LMS-101Digital Sender Kit For Mooney M20LMS
10-06547
$2476.10
Quantity
CC284022-ARROW-101Digital Sender Kit For Piper Arrow
10-06548
$1314.50
Quantity
CC284022-P24-101Digital Sender Kit For Piper PA22/24
10-06549
$1238.60
Quantity
CC284022-P24-105Analog Sender Kit for Piper PA22/24
10-06523
$1397.00
Quantity
CC284022-P23-101Digital Sender Kit For Piper PA23
10-06550
$2476.10
Quantity
CC284022-CHEROKEE-101Digital Sender Kit For Piper PA28
10-06551
$2476.10
Quantity
CC284022-P30-101Digital Sender Kit For Piper PA30/40
10-06552
$2476.10
Quantity
CC284022-P31-101Digital Sender Kit For Piper PA31
10-06553
$5057.80
Quantity
CC284022-P68-101Digital Sender Kit For Vulcanair P.68
10-06557
$1238.60
Quantity
CC284022-MAULE-105Analog Sender For Maule Not FAA Approved Set of 2
10-06559
$1397.00
Quantity
CC284022-MAULE-101Digital Sender Kit For Maule
10-06560
$1238.60
Quantity
CC284022-C175-101Digital Sender For Cessna 172/175
10-06818
$1314.50
Quantity
CC284022-C195-101Digital Sender For Cessna 190 / 195
10-06821
$1353.00
Quantity
CC284022-B20-101 Digital Sender 20 Gallon Main For Beech 33 / 35 / 36
10-06823
$1238.60
Quantity
CC284022-B25-101Digital Sender 25 Gallon Main For Beech 33 / 35 / 36
10-06824
$1238.60
Quantity
CC284022-B10-101Digital Sender 10 Gallon Aux For Beech 33 / 35 / 36
10-06825
$1238.60
Quantity
CC284022-B36TC-101Digital Sender 40 Gallon Main For Beech 33 / 35 / 36
(6 Total Senders)
10-06827
$3790.60
Quantity
CC284022-B40-101Digital Sender 40 Gallon Main For Beech 33 / 35 / 36
(4 Total Senders)
10-06828
$2476.10
Quantity
CC284022-NN MAIN-101Digital Sender BN Main 101 for B-N Group
10-06829
$1289.20
Quantity
CC284022-BN TIP AFT-101Digital Sender BN TIP AFT 101 for B-N Group
10-06830
$1544.40
Quantity
CC284022-BN TIP FWD-101Digital Sender BN TIP FWD 101 for B-N Group
10-06831
$1289.20
Quantity
CC284022-ACA8-101Digital Sender For American Champion 8KCAB / 8GCBC
10-06832
$1238.60
Quantity
CC284022-ACA7-101Digital Sender For American Champion 7ECA / 7GCAA / 7KCAB
10-06834
$1238.60
Quantity
CC284022-114-101 Digital Sender For Rockwell Commander 112 / 114
10-06836
$1238.60
Quantity
CC284022-TB10-101Digital Sender For Socata TB9 / 10
10-06837
$1314.50
Quantity
CC284022-TB20-101Digital Sender For Socata TB20 / 21
10-06838
$2629.00
Quantity
CC284022-108-101Digital Sender For Stinson 108-1 Thru 180-5
10-06839
$1238.60
Quantity
CC284022-AA5-101Digital Sender For Grumman AA-5 / AG-5
10-06840
$1238.60
Quantity
CC284022-FTOP-101Digital Sender For Flint Aero Tip Tank (Top Mount) - Set of 2
10-07478
$1314.50
Quantity
CC284022-P23TIP-101Digital Sender For Piper PA23 Tip Tank - Set of 2
10-07479
$1314.50
Quantity
CC284022-TB10/TB09-101Digital Sender For Socata TB9 / 10 - Set of 4
10-07480
$2788.50
Quantity
CC284022-TB20/21-101Digital Sender For Socata TB20/21 - Set of 2
10-07481
$1391.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Each kit includes all necessary senders for the selected aircraft.

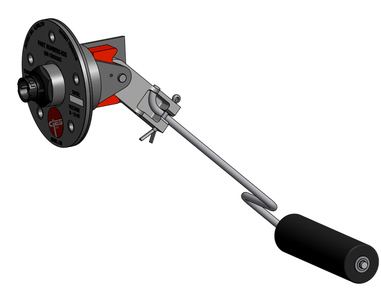

A better way to measure fuel. This Magnetic Field Sensor technology is patented by CiES Inc. for fuel level senders. These sensors use the basic premise that the electrical properties of certain ferromagnetic alloys, such as permalloy, are influenced by external magnetic fields.

Like a compass that always points to magnetic North, no matter how you move the fuel - these fuel level senders always point to the float sitting on the surface.

The CiES digital fuel quantity system utilizes a high technology sensor system that allows repeatable accurate measurement of fuel in aircraft tank. This high technology and patented sensor system allows fuel measurements down to a change in fuel level to less than 0.03 of an inch. This measurement represents much less than 10ths of a gallon of AVGAS or Jet A. The non-contact measurement method insures a lifetime of operation providing the same consistent fuel level output in the cockpit with modern digital fuel indication.

The initial STC allows the CiES to replace the existing fuel quantity senders in:
  • Britten Norman BN2
  • Beech 33, 35, 36, 55, 58
  • Beech Duchess
  • Twin Bonanza
  • Cessna 170, 172, 177, 177RG, 180, 182, 185, 206, 207, 310, 320, 340, 401, 402, 406, 411, 414, 421, T303
  • Caravan208
  • Cirrus SR20 SR22
  • deHavilland DHC-2 Beaver
  • Fairchild 24
  • Gippsland GA8
  • Helio Courier
  • Marchetti SF260, 205
  • Maule
  • Mooney
  • Navion
  • Piper PA 18, PA 23, PA 24, PA 28, PA 30, PA 31, PA 32, PA 39, PA 44
  • Stinson 108, V-77
  • Twin Commander 500, 600 & 700 series
  • Vulcanair P68
  • Fairchild 24

Specifications

  • CiES CC-Series fuel senders are TSO certified to C55a and associated SAE AS405C.
  • They have met all the DO-160(F) and DO-254 DAL (Design Assurance Level) Level D requirements for the TSO.

Documents

Videos

https://www.youtube.com/embed/cQXqCw6kAV8
https://www.youtube.com/embed/F2NMPmBga6s?si=3F396YoTnYyM8TJ_

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Regarding the magnetic sensor CC284022-P24-101 for the PA22/24 - is the price for both (two) senders? What else is included in the kit?

Per the manufacturer the kit will come with the two senders and gaskets.

Q: There are two questions asked for this product. They both are asking if you get two or four senders with the kit for the PA-24 Comanche. One answer says two, and one says four. Can someone clarify? I have two main and two aux tanks, so I need four senders.

Kit part number 10-06549 comes with 2 senders, for 4 you will need to order 2 kits.

Q: Besides the higher price, what is the difference between senders pn 10-06539 and pn 10-06819?

Per the manufacturer: p/n:10-06539 is for bladder tanks. P/n:10-06819 is for wet wing which is metal tanks.

Q: How many sensors come with the Piper Arrow kit (10-06548)? The parts catalog shows 4 sensors, an inboard and outboard sensor in each tank.

Per the Manufacturer: The Piper Arrow kit (10-06548) does comes with 4 sensors one for each of the inboard and outboard tank.

Q: Please can you confirm if the Part # 10-06514 kit comes with 2 x sender units , 2 x gaskets and 10 x screws for fitment ?

This will come with 2 senders and gaskets but no hardware.

Q: Will pn 10-06549 work with the Aero Logic FL-202?

Yes, these two items are compatible.

Q: For a Beechcraft B55 with only 2 tanks, is one set required?

Yes, so purchasing qty: 1 you will get a set of 2 for two tanks.

Q: Will these fuel senders work with the JPI EDM-900/930?

CIES probes will work with EDM units. When you fill out the required order form, you would indicate what sender you have and JPI will program the unit for them.

Q: Three questions plz: 1. CIES offers a five (5) year warranty on the sender unit(s). Is that same warranty in place if the product is purchased through Aircraft Spruce or does that change? 2. Are there any other differences in warranty given this is a customized product? 3. Why is shipping not free?

The warranty stays the same if purchased from us or the MFG. The shipping is not free since this is a special order part.

Q: Is the Cessna 177 part number CC284022-C177-101 (10-06535) you advertise the same as part number CC2840220601-101, which is what I received from CIES?

CC2840220601-101 is likely their part number for the probes in the 10-06535 kit.
