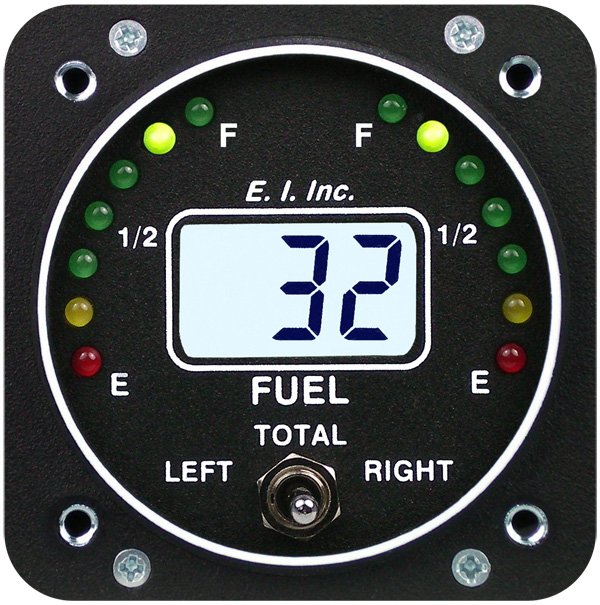

Electronics International Fl-2Ca Dual Fuel Level Gauge - Capacitive
MFR Model# FL-2CA
Overview
|
The FL-2 offers pilots digital fuel levels, with unprecedented accuracy, for dual fuel tanks. Not only does the FL-2 display each tank digitally, it also provides 90′ graphical arcs for immediate, quick reference of each tank’s level. The FL-2CA is compatible with capacitive probes. The FL-2 is not STC’d for installation in a certified aircraft. |
Features
Analog Display210 Degree, analog arc with green, yellow and red LED’s.
Digital Display
Large, crisp, LCD display with adjustable backlighting for night operations.
Fuel Slosh Stabilization
When in flight, fuel will slosh around in the aircraft fuel tanks, creating irritating readings that constantly jump around. The FL-2 has a Fuel Slosh Stabilization calibration point that averages fuel level readings, creating a much more stable, but still extremely accurate fuel reading. Calibrate between a couple of seconds all the way up to over a minute of fuel slosh averaging.
9 Calibration Points
The FL-2 allows installers to program from as little as two all the way up to nine fuel level calibration points in the fuel tank. This flexibility eliminates inaccuracies due to non-linear fuel tanks.Easy Programming Interface
The FL-2 is a simple instrument to install and program. Clear step-by-step instructions make programming the instrument easy to calibrate to your fuel tank senders.
Selectable Units
The pilot can easily select between displaying fuel level in Liters, Gallons or Lbs with a switch on the front of the instrument panel.
Specifications
Dimensions: 2.5″ x 2.5″ x 3.65″ Depth, 2.25″ BezelAnalog Display: Two sets of 7 High Intensity Light Emitting Diodes (LEDs) in 90 degree arcs with Intensity Control Line available for dimming. Sequential flash test on power up.
Power Requirements: 7.5 to 35 volts, 1/10 Amp.
In The Box
- Instrument
- Wire Harness
- Installation and Operating Instructions.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This depends on what type of probes you have in the tank. This gauge is designed to work with capacitive probes and not resistive probes.
No, the probes are not included with this instrument. The EI P-300C capacitive fuel probes should be utilized, our PN 10-00382.
