AvIasport Rotax 914 EGT Gauge Celsius - 2 1/4 Inch

$131.73/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 15-08551
MFR Model# IM-775

Overview

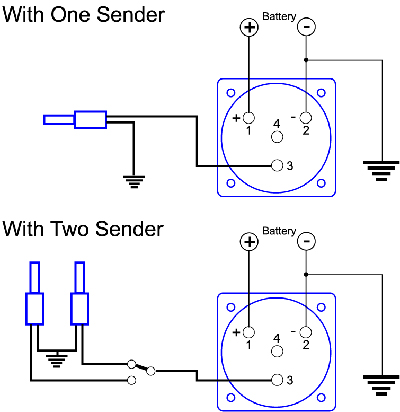

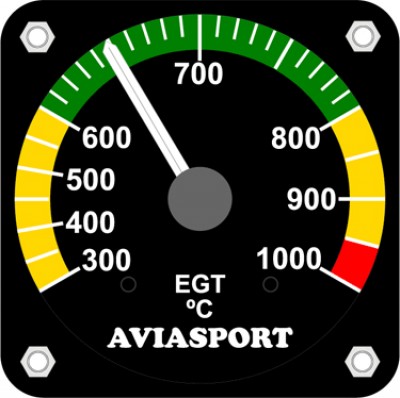

The IM-775 instruments have been designed especially to measure the EGT in Rotax® engines 914. The IM-775 is available in 2 1/4" (57mm) diameter. With a optional switch, you can measure the Temperature of two EGT. The instruments use a pointer thats turns 240º, witch gives them great resolution. Their display areas are divided into red, green and yellow zones in line with the ROTAX limits.

Thanks to embedded operational amplifiers, this instrument has a high accuracy, but needs a power supply of 12V or 24V.

Specifications

  • Case: Plastic
  • Weight: 200g
  • Suitable for: Rotax 914 With Type "K" sender
  • Power Supply: 10-30VDC
  • Power Current: 0.1 Amp. Max.
  • Scale : 300-1000 ºC
  • Subdivision scale: 10ºC
  • Max. Deviation: 1%
  • Dimensions: 2 1/4" (57mm) Diameter
  • Calibration: Calibrated by the manufacturer prior to shipment.
