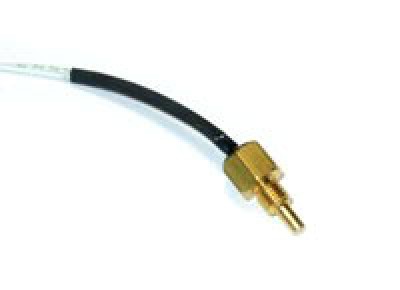

Program your EIS to warn you when your carburetor temperature is right for icing. Machined brass probe works with most carburetors except Bing. |
Exactly what ordered
GRT EIS Caburetor Temperature Probe Carb-01
Bitte um Lieferung
Does not work with Lycoming O235. I agree with Bruce N s assessment of the product. Carb temps 75 - 90 Fahrenheit.
Because of its metal design, it measures temperature of the carburetor, not the temperature of the carburetor air. There is a significant difference between the two, particularly on Lycoming engines where the carburetor is heated by the oil pan.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the manufacturer, the thread size is a 1/4in and the length under the head of the probe is also a 1/4in.
Per the manufacturer: at 59F - 15.7K Ohms, at 68F - 12.5K Ohms, at 77F - 10K Ohms, at 86F - 8K Ohms.
For interface to the Grand Rapids EIS 400 uses D-Sub male pins 24 to 20 gauge. Our part number for these pins is 11-00139.
Per the manufacturer - the probe is a thermistor type.
This will read in Fahrenheit.
Black wire is ground.
