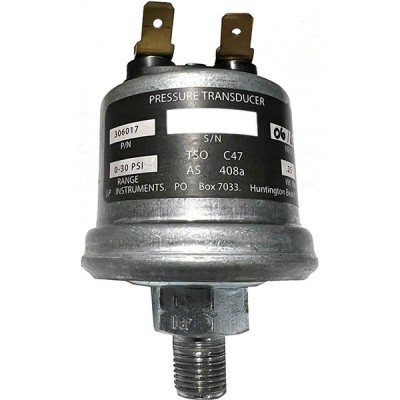

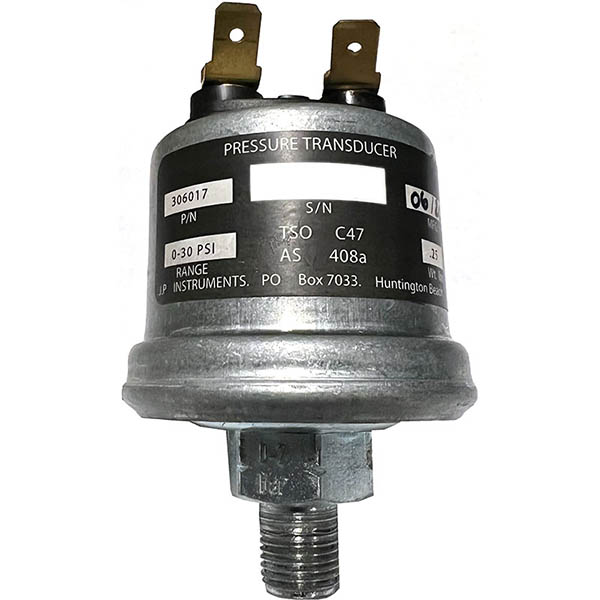

The Fuel Pressure injected engine 5-32 psi, 1/8 NPT is mounted to the pressure line using a 6 inch flexible hose and fittings (not supplied). You would then mount the other side of the pressure line You would use tie-wraps to mount the pressure sensor on an engine mount structure. It is not recommended to mount the sensor directly to the engine block. |
Removed a 4 wire transducer and installed this 2 wire, strange they both have the same part number contacted JPI they sent an update for the unit, also had to change factory settings. One other thing JPI suggested I buy from aircraft spruce as it would cost less.
J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO
Exact replacement for my JPI engine monitor. Old sender was reading high by 7 PSI and this fixed the issue.
J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO
Excellent replacement part.
J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO
J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO
J.P. Instruments EDM Fuel Pressure Inject Sensor 1/8NPT 5-32PSI TSO
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Fuel pressure not available for the EDM 830. The slimline includes the sender but is not FAA approved for certified aircraft.
Yes, this will work on the EDM 350 per the Manufacturer installation manual Rev IR page 11.
This sender functions from 5-32 psi.
No, this does not work for any primary JPI unit. This unit is only compatible with advisory units.
