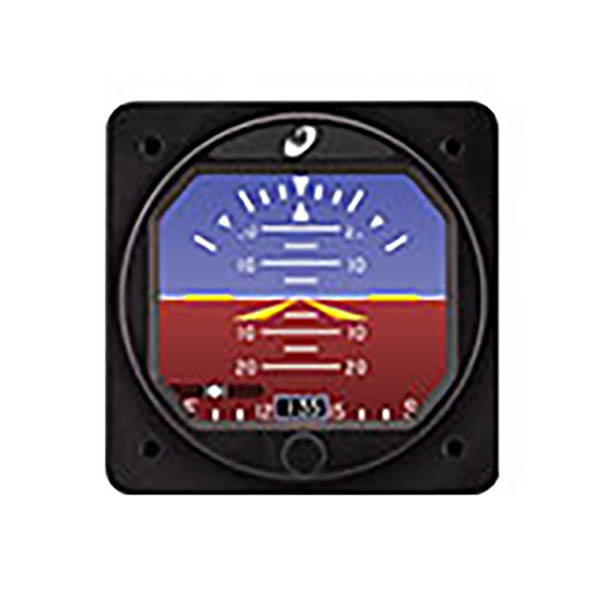

Mid-Continent Flex MD23-342 Digital Attitude Indicator Slip Turn Rate Heading LCD

0 Reviews 0 Answered Questions
$6022.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 10-07611
MFR Model# MD23-342

Overview

Mid-Continent Flex MD23-342 2" Digital Attitude Indicator Slip Turn Rate Heading LCD

Features

  • Four primary functions: Attitude, slip, turn rate and heading
  • Heading with primary avionics via external ARINC input
  • Primary functions utilize modern solid-state MEMS gyro and accelerometer
  • Easy installation with user-selectable panel tilt and roll-offset
  • Fits standard 2-inch panel cutout
  • Lightweight — 0.4 lbs
  • Simple user interface — Single, push-and-turn control knob
  • Daylight readable LCD and smooth, high-resolution graphics
  • Manual, external lighting control or built-in photocell for automatic dimming
  • Night Vision Integrated System (NVIS) compatible (available)
  • TSO certified to Design Assurance Level A
  • Designed and built in Wichita, Kansas, USA
  • Two-year limited warranty

Specifications

  • Power Input: 10–32 VDC
  • 0.14A @ 28 VDC; 4 watts nominal
  • Data Input: ARINC 429: Low or high speed; Label 320
  • Data Output: ARINC 429: Low or high speed; Labels 320, 324, 325
  • Operating Range: Attitude: 360° angle, 500° per second for pitch and roll (maximum)
  • Lighting: 5, 14, or 28 VDC external control or internal photocell for automatic dimming
  • Weight: 0.4 lbs (0.17 kg)
  • Mounting: Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
  • Dimensions: 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters)
  • Mating Connector: P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect)
  • Certification: FAA TSO certified to C3e, C4c, C8e, C10c, C106, C113b, C201
  • RTCA DO-160G qualified
  • RTCA DO-178C qualified, Design Assurance Level (DAL) A
  • Rights: U.S. Patent 11,048,389
