MGL Color 4-Channel Thermocouple Temp Display - Blaze Series

$412.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 11-16593
MFR Model# TC-5

Overview

4-channel Thermocouple (EGT/CHT) Monitor

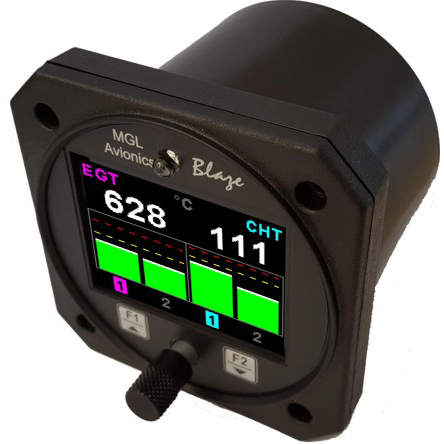

The TC-5 is a 3 1/8" Sunlight readable 4 channel thermocouple color display instrument.

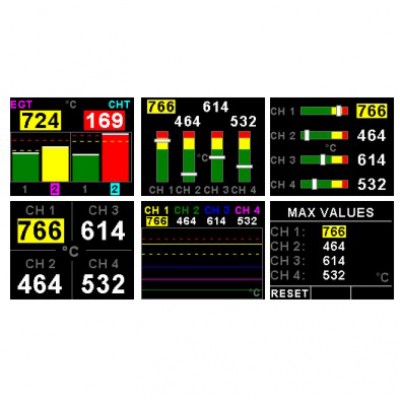

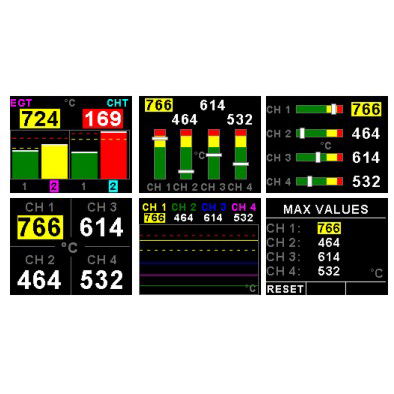

Instrument can be configured for 5 different temperature display screens. The display can be configured to group EGTs and CHTs to common settings or each thermocouple channel can be independently displayed with individual programmable high alarm and probe type. The TC-5 also has a trend graph and maximum values display screen.

The TC-5’s high accuracy is due to its built in thermocouple linearization curves and cold junction compensation techniques. Temperature probes can be common J, K or E type thermocouple probes as used in CHT and EGT senders. Temperatures can be displayed in degrees Celsius or degrees Fahrenheit from -100ºC to 1200ºC (-148ºF to 2192ºF).

The TC-5 also features a built in engine leaning facility which allows the pilot to optimize the fuel mixture according to peak EGT temperatures as well as a cruise mode facility to provide instant identification of changing EGT/CHT trends.

The TC-5 can also be interfaced via the CAN bus to an external RDAC unit (Remote Data Acquisition Unit). This allows for easier installation as the RDAC unit is normally mounted in the engine compartment.

Features

  • 5 different temperature display screens
  • Supports J, K and E type thermocouple probes
  • Temperatures can be displayed in ºC or ºF from -100ºC to 1200ºC (-148ºF to 2192ºF)
  • High accuracy: Built in thermocouple linearization curves and cold junction compensation
  • Records maximum temperatures reached for each channel
  • Includes a trend graph display of each thermocouple channel
  • Engine leaning function according to peak EGT temperatures
  • Engine cruise mode to instantly identify changing EGT/CHT trends
  • External RDAC interfacing via the CAN bus (optional)
  • An external output activates when a high alarm condition has been reached
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are this MGL Blaze series units FAA TSOd or covered by an STC?

No. This product by MGL is experimental only and cannot be installed in certified aircraft.

Q: Can the TC-5 display four EGT and four CHT on two different screens?

This is only a four channel instrument. If you would like more than that you will need to add the RDAC unit to increase the amount of probes acceptable.
