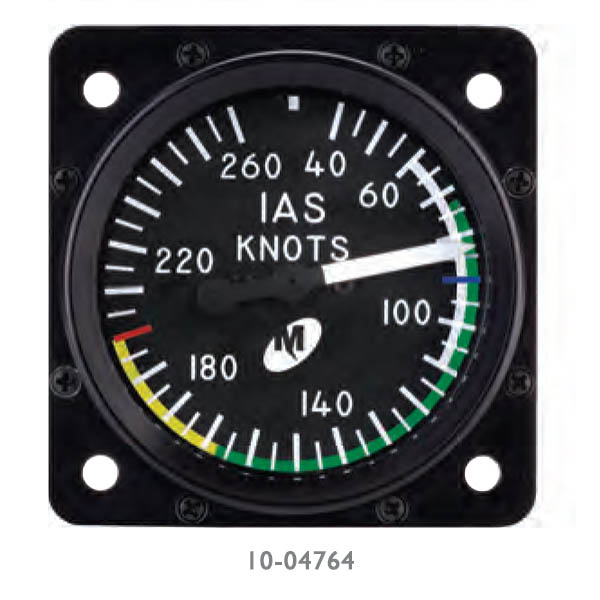

Mid-Continent Airspeed Indicator 2 Inch
$2279.20/Each
Price Includes GST
Part# 10-04764
MFR Model# MD25-260
MFR Model# MD25-260
Overview
|
Lightweight and compact, this 2-inch indicator is ideal for a wide range of general and business aviation aircraft. It is used by OEMs as standard equipment and in many aftermarket programs. It is included in the Garmin G500/G600 AML STC. Combine a 2-inch airspeed indicator with Mid-Continent’s 2-inch MD15 altimeter and 4200 attitude indicator for a complete standby package designed for tight panel applications. |
Features
- 160 - 400 knots configuration
- Customizable range markings can be added to match aircraft operating handbook
- Combine with a Mid-Continent MD15 Altimeter and 4200 Attitude Indicator for a complete standby package designed for tight panel applications
- Approved to FAA TSO-C2d
- Integral long life 5, 14 or 28 volt LED lighting
- Anti-reflective glass enhances visibility and reduces pilot fatigue
- Rear-mounted in standard 2 1/4” cutouts horizontally, vertically or individually
- Designed and built in Wichita, Kansas, USA
- One year limited warranty
Specifications
CertificationFAA TSO certified to C4c, C2d and C10b
RTCA DO-160F
Range Markings
Per customer specifications (optional)
Lighting
Field replaceable light tray available for 5, 14, & 28VDC input
with incandescent bulbs or white LEDs
Weight
0.6 lbs.
Dimensions
2.4 x 2.4 x 3.9 inches
Color
Case: Black
Mounting
Rear mount
Altitude
-15,000 to +50,000 feet
Operating Temperature
-20°C to +55°C
Connections
1/8-27 NPT per MIL-P-7105
