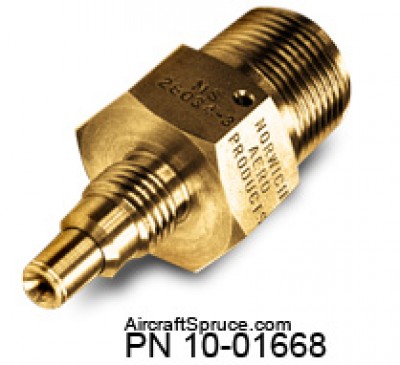

MS28034-3 Engine Temperature Sensor
MFR Model# MS28034-3
Overview
|
Presently in use in government and general aviation industry under liquid and gaseous conditions, this sensing device exceeds stringent U.S. Military Specifications for response time, burst pressure, and AC high potential tests. |
Features
- Fast Response
- Single Element
- Hermetic Seal, Tip
- Weld Internal Construction
- Low Stem Conduction
- Integral Connector
- 2-Wire Element
- Corrosion Resistant
- Thread Mounted
Specifications
- Response Time: (63.2% of Step) 1.3 sec. (typ.)
- Insulation Resistance: 1000 Megohms @ 100 VDC
- AC Breakdown: <.5 ma @ 500 VAC
- Operating Pressure: 200 PSI
- Burst Pressure: >600 PSI
- R vs. T Curve Data: Per MIL-T-7990B, Table I
- Self-Heating: Error
- Operating Temp. Range: -70° C to 300°C
- Vibration Specification: MIL-STD-810C, Method 514.2 Procedure I, Cat. B.I, Curve L
- Weight: .12 lbs (Typ.)
- MIL or Standards Society Spec: MIL-T-7990B, MIL-STD-810, MIL-C-5015, MS28034, FED-STD-151, MIL-STD-105
- Materials: Stainless steel housing and connector shell with
- FAS-TIP sensing element
