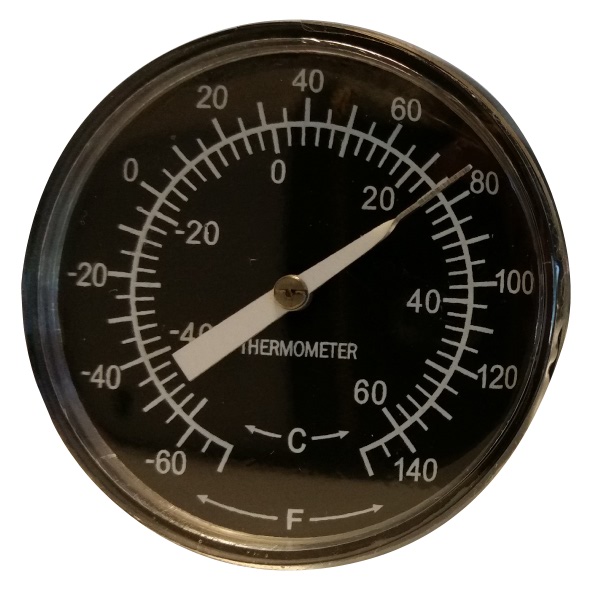

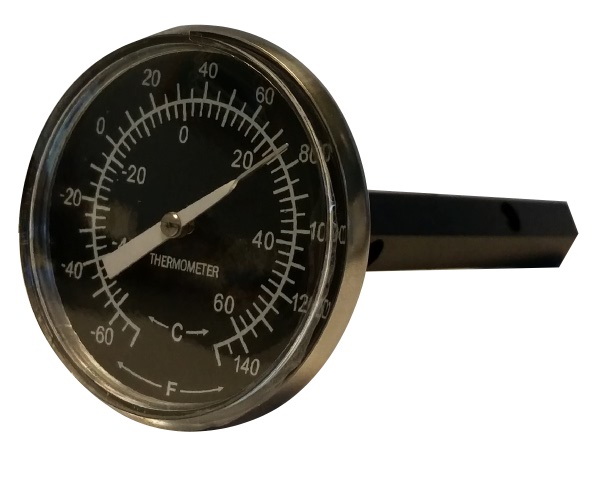

Not FAA PMA Approved The Air Temperature Gauge is a direct reading gauge with both Fahrenheit and Centigrade graduations on the dial. It can be installed through plexiglas windshields, sheet metal cowling, or through the center strip of the windshield. When installing, choose a location that is visible to the operator which does not interfere with any adjacent parts or hardware. Mounting Hole Drill a .375" (3/8") + .010"/-.000" hole through the part of the window or wall section desired. For use with a 7/16" torque wrench. Do not exceed 20 inch-pounds torque. See included instructions for further installation. |
Merci beaucoup
Scott Type Free Air Thermometer
Thanks
Scott Type Free Air Thermometer
As always Aircraft Spruce gave great service. The OAT gauge was made in China and although does the job it’s not really up to the quality we want in aviation. Time will tell how it stands up to the environment.
Scott Type Free Air Thermometer
As advertised.
Scott Type Free Air Thermometer
Exactly as advertised but even easier to install.
Scott Type Free Air Thermometer
The thermometer worked great. Easy to install with no modifications. Good price. Overall very satisfied with great service from Aircraft Spruce and the products purchased. Thank you,
Works great! installed flawlessly on my Bonanza
Installed in place of previous thermometer - same diameter hole - had installed in probably less than 1 minute. Previous Thermometer was digital and needed two batteries and was not always on. I much prefer the analog - always on, no batteries and shows both Fahrenheit and Centigrade temps. Perfect!
It works. It fit in the old hole. It was easy to install. What else is there to write about an analogue OAT gauge?
Easy to read, and shows temps accurately.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Instructions for installation are included with the thermometer. Additional mounting hardware is not required for installation as it is fastened using a torque wrench.
The thermometers are not FAA approved.
Please note that this is a NON PMA'd/TSO'd thermometer. That being said, it works and has the same dimensions as the thermometers being used in thousands of general aviation aircraft. The hole size used is 5/16 of an inch.
This instrument weighs 0.12 lbs.
Yes, our part # 10-15500 is ordered under the manufacturer part # 2716-00.
The threaded section of the Scott type thermometer is 1-1/8".
The probe is 3.5", no digital version is available.
2-1/16 inches diameter
No. This thermostat is not adjustable and has no provision for calibration.
The thread is 5/16-24.
