Shadin Digiflow Totalizers

0 Reviews 0 Answered Questions
From $0.00 to $0.00
Prices below incude GST
Main Image
Main Image
Main Image
DESCRIPTION Part No. Price Buy

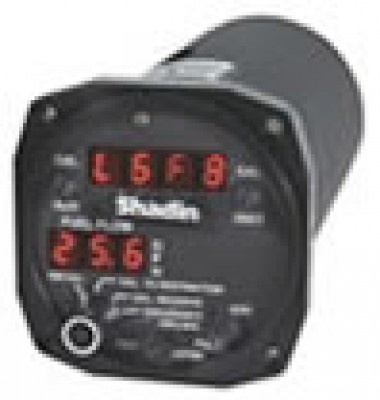

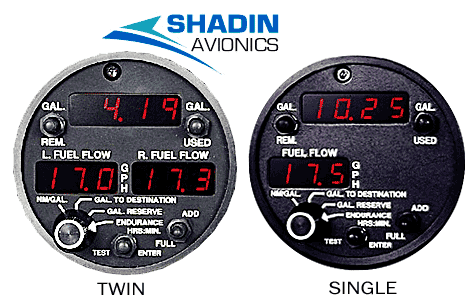

SHADIN SINGLE DIGITAL WITH
LORAN GPS
10-02212
Special Order (Contact Sales)
Quantity

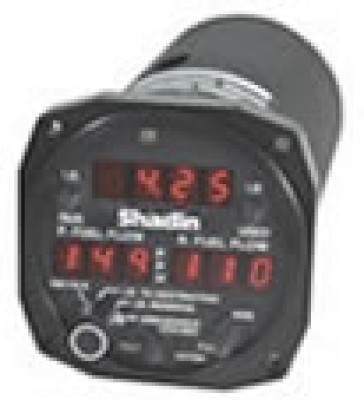

SHADIN TWIN DIGITAL WITH
LORAN GPS
10-02213
Special Order (Contact Sales)
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Digiflo-L is a Digital Fuel Management System designed to provide complete fuel management information under real flight conditions without any manual entry of data (after entry of the initial fuel on board information).

Digiflo-L is connected to the engine fuel flow transducer for fuel flow information and to the Loran-C or GPS receiver serial port for navigation data (ground speed, distance and estimated time en route).

This system is also capable of transmitting the fuel information to the Bendix/King KLN-88, KLN-90, and Garmin GPS navigation receivers, for additional calculations and display of fuel management data.


Information needed to order:
• Aircraft Make & Model
• Engine Make & Model
Transducers maybe required. Please specify if needed.

Features

  • TSO Category: C44a
  • Operating Temperature: -30°C to +50°C
  • Humidity: 95% @ 32°C
  • Accuracy: ±1%
  • Max. Usable Fuel: 900 Gallons
  • Flow Rate: Up to 450 GPH
  • Input Voltage: 12-28 VDC
  • Input Current: .2 Amp Max
  • Display: 7 Segment Red LED
  • Dimensions: 3.125" x 6.5"
  • Weight (Indicator): 20 oz.
  • Weight (Reciprocating Transducer): 3 oz.
  • Weight (Turbine Transducer): 16 oz.
  • Available for Display in: Gallons/Lbs/Liters
  • Warranty: 12 Months
