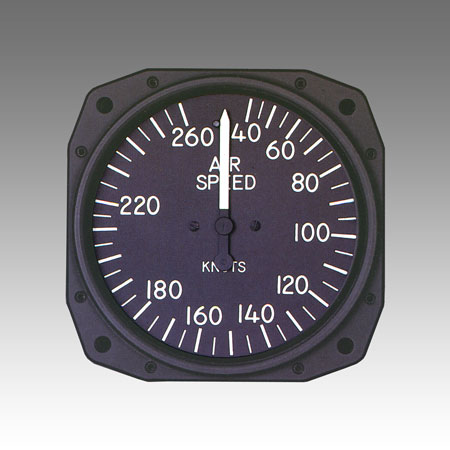

Sigma-Tek 3-1/8 Airspeed Indicators

From $820.00 to $1490.00
Prices below incude GST
Model Lighted MPH Knots Part No. Price Buy
EA5171-( )LYes40-20040-170
10-05153
$1156.10
Quantity
EA5171-4--40-20040-170
10-07469
$918.50
Quantity
EA5172-( )No40-25040-200
10-03210
$902.00
Quantity
EA5172-( )LYes40-25040-200
10-05154
$1639.00
Quantity
EA5173-( )No40-30040-260
10-03215
$1417.90
Quantity
EA5173-( )LYes40-30040-260
10-05156
$1071.40
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These airspeed indicators have unrestrained movements.These instruments are actuated by ram air and ambient atmospheric pressure obtained from the aircraft pitot and static pressure systems. A moveable pointer and a fixed dial indicate airspeed with the zero index at the 12 o’clock position. Temperature compensation is internal and there is no external zero adjustment. Pointer damping is internally adjustable.

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do these instruments have knots indication?

Part # 10-05153 will have both MPH and KNOTS for example.
