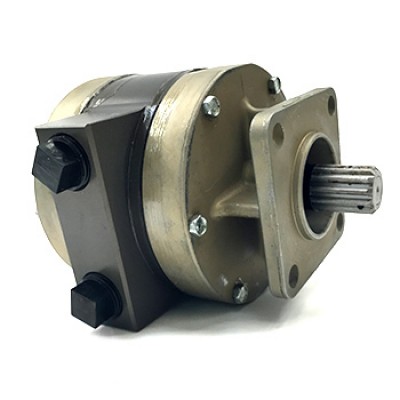

Sigma-Tek Dry Air Pump 1U128-006

$1303.50/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 10-02778
MFR Model# 1U128-006

Overview

The Sigma-Tek 1U128-006 is a pump which carries a warranty for 2-years or 1000 hours. It uses an aluminum rotor and rotor housing, making the pump very resistant to damage from ingestion of foreign objects, excessive loads or engine oil. It provides clean, dry air for operation of air driven instruments in aircraft operating at medium altitudes. Pump rotates clockwise or counterclockwise in vacuum or pressure mode. May be mounted in either a vertical or horizontal position. FAA approved as a direct replacement for all instrument pumps but is not intended for supplying air to deicing boots. Mounting gasket furnished. Install suction regulator in line to instruments. Delivers 6 In. Hg vacuum (2.9-8.5 minimum CEM) or 6 In. Hg pressure (3.7-8.5 minimum CEM) from 1500 to 4000 RPM. No core charge.

Specifications

  • Height: 3.825" ± .03"
  • Width: 3.55" ± .03"
  • Depth: 3.91" ± .06"
  • Weight: 2.2 lbs. (max)

  • Engine Pad: AND 20000
  • Rotation: Bi-directional
  • Overhang Moment: 5.2 in-lbs
  • Static Coupling
  • Shear Torque: 175 in-lbs (max)

    Installation
  • Port Threads: 3/8" x 18 N.P.T.
  • Hose Fittings: 1/2" I.D. (min)
  • Hose / Tubing: 5/8" I.D. (min)
  • Inlet Filter: 0.3 microns

    Environmental
  • Ambient Temperature: -40° C to 93° C (typ.)
  • Exhaust Temp. (Intermittent): 375° F for 5 mins. (max)
  • Exhaust Temp. (Continuous): 300° F
  • Vibration:CPS: 5 to 150
    Maximum Double Amplitude: 0.100 in.
    Maximum Acceleration: 10 G's
  • Humidity (Dewpoint): -70° C
  • Altitude: -1,000 to 30,000 ft.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Joe W Verified Purchase

Sigma-Tek Air Pump 1U128-006

September 28, 2021

What it shoud be...at a price however. Orde was processed et internationally shipped very quickly.

Andreas H
August 31, 2020

The pump I purchased was delivered promptly and in good condition. It replaced a pump that failed prematurely. Sigma Tek stood behind the product and made things right without a bunch of fuss.

Walt
September 1, 2017

The Good: Last 2 Sigma-Tec pumps lasted well over 1000 hours. Since they can turn either direction, I can keep one spare pump for multiple airplanes. The Bad: Different shape pump can make R&R tricky if currently using a different brand pump. Price is high, and zero core value makes price harder to swallow. No wear gauge. Reality: Pump costs twice as much but lasts twice as long, fewer scary moments IFR, less down time/expense replacing blown pumps.

Flying A
March 9, 2014

Unit failed after 7 months and around 60+ hours. replaced both filters with the pump.

Brian J Verified Purchase

Sigma-Tek Air Pump 1U128-006

October 23, 2022

Mine howled and died at 700 hours/5 years. Previous one lasted 1600+ hours before removal. No core value, and with this lifespan, theres no point investing this much money into a pump that lasts only as long as a Tempest at $269. Sigmatek was disinterested and unresponsive to my experience.

Duffy F
May 14, 2021

Pump made it 18 months and 60.4 hrs before bearing started howling. order# 365183

Justin
January 12, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: On the 2 top inlet ports on the Sigma-Tek Dry Air Pump, if only 1 is used, does the other one need to be capped or plugged?

You will need to keep the other side open as one port is used for vacuum and the other is for exhaust. The vacuum and exhaust side will be determined based on the way your engine turns.

Q: We have SIGMA-TEK 5000B-36 SERIES STANDARD ATTITUDE GYRO. (P/n 5000B) Will this air pump will be Ok for it?

Yes, this will work as a air pump for the attitude gyro listed/

Q: Does this pump PN 10-02778 replace the 1U128-001? IO-520K

Yes this is a direct replacement for 1U128-001.

Q: Is this Sigma-Tek Dry Air Pump 1U128-006 a replacement for the 1U128B?

Yes, it is.
