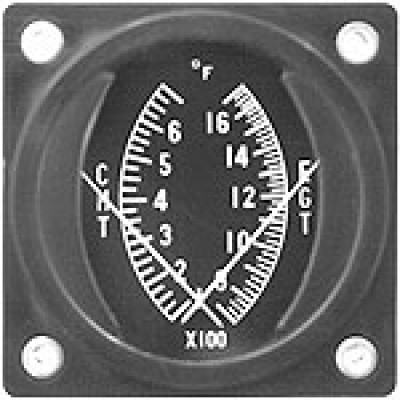

Falcon CHT/EGT 2 1/4 Inches Combination

From $200.95 to $248.95
Prices below incude GST
Description Part Number Price Buy
2-1/4 CHT / EGT COMBO GAUGE 100-700 F / 700-1700 F
10-01403
$273.85
Quantity
2-1/4 CHT / EGT COMBO GAUGE 50-375C / 375-925C
10-01406
$221.05
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These gauges are not temperature compensated; changes in ambient temperature will affect their readings. Unlike our MICRO-1000 gauges, they do require shock mounting. All gauges come with a one-year warranty which covers any malfunction. Includes 14mm probe with 4-ft. leads. Gauge leads may be extended with 18-gauge wire.

Reviews

Ruffieux P Verified Purchase

CHT/EGT Combination Deg. C.

August 5, 2022

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What EGT and CHT probes come with your PN 10-01403 - 2 1/4 Falcon combination EGT & CHT gauge?

Part number 10-01403 comes with a 14mm CHT probe and a clamp style EGT probe.

Q: Can this Falcon CHT/EGT combo gauge be used in certified aircraft?

No, Falcon instruments can only be used on experimental aircraft. They are not FAA approved.

Q: Does the gauge have illumination? Also, is any power source needed for it to function?

The gauge is not internally lit. No the probes will give the gauge it's indication, separate power not required.

Q: Can this gauge be used with a single cylinder engine? And what parts are needed to shock mount it? Thanks!

Yes, as this is will only have one probe for each function. This is installed in a 2-1/4 inch hole with instrument screws. the size is dependent on the thickness of your panel.

Q: What diameter is the EGT probe itself?

The included EGT probes is the: SWIFT EGT CLAMP 32 TYPE PROBE 3/4" TIP 48"
