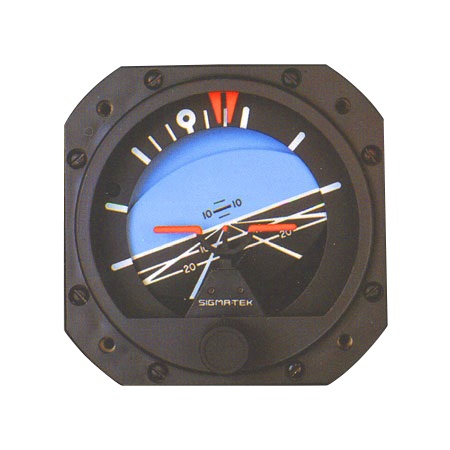

- Photo may represent series and not specific product
- SHARE
Sigma-Tek 5000B Series Standard Attitude Gyro
| Sigma-Tek | Model | Display Colors | Inclinometer | Lighted | Panel Tilt | Part Number | Price | Buy |
|---|---|---|---|---|---|---|---|---|
| 1U149-010 | 5000E-13 | Blue/Black | No | Yes | 0 | 10-04790 | $2061.40 | |
| 1U149-010-1 | 5000B-37 | Blue/Brown | No | Yes | 0 | 10-01071 | $1994.30 | |
| 1U149-010-4 | 5000B-54 | Blue/Brown | No | Yes | 8 | 10-04655 | $2057.00 | |
| 1U149-010-5 | 5000B-64 | Blue/Black | No | Yes | 8 | 10-04660 | $2066.90 | |
| 1U149-013-1 | 5000B-45 | Blue/Brown | Yes | Yes | 0 | 5000B-45 | $2706.00 | |
| 1U149-013-3 | 5000B-53 | Blue/Brown | Yes | Yes | 8 | 5000B-53 | $2460.70 | |
| 23-501-06-9 | 5000B-20 | Blue/Black | No | No | 0 | 10-00389 | $1864.50 | |
| 23-501-06-12 | 500B-24 | Blue/Black | No | No | 8 | 10-04652 | $1709.40 | |
| 23-501-06-16 | 5000B-36 | Blue/Brown | No | No | 0 | 5000B | $1743.50 | |
| 23-501-06-17 | 5000B-42 | Blue/Brown | No | No | 8 | 5000B-42 | $1697.30 | |
| 23-501-033-3 | 5000B-46 | Blue/Brown | Yes | No | 0 | 5000B-46 | $2160.40 | |
| 23-501-034-4 | 500B-51 | Blue/Brown | Yes | No | 8 | 5000B-51 | $2206.60 |
Overview
|
The 5000B is an air-driven gyro that has a pictorial horizon mask and fixed airplane. The mask moves to indicate climb, dive, and bank. Bank and pitch attitudes are displayed so that the pilot’s sensing of the gyro indication is the same as the interpretation of the relation between the wings of the aircraft and the natural horizon during visual flight.
This instrument is FAA certified, and can be used to replace the aircraft’s turn coordinator when equipped with an inclinometer. The Standard configuration can replace most air driven gyros with the major difference being in the layout and colors of the display. NOTE: Lighted instruments do not include lamp trays, please see accessories to purchase separately. |
Specifications
- Height: 3.38"
- Width: 3.38"
- Depth: 7.35"
- Weight: 1.8 lbs. max.
- Markings: Matte white
- Finish: Dull black
- Temperature: -30° to 50° C
- Vibration: CPS: 5 to 50
- Maximum Double Amplitude: 0.020 in.
- Maximum Acceleration: 1.5 G's
- Humidity: 0% to 95% at 32° C
- Altitude: 0 to 40,000 ft.
- Warning Flag: No
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Sigma-Tek 5000 series is certified (TSO'd) and is intended for installation into a certified aircraft. The options are up to you to select.
The 14V tray is part 10-02757. The 28V tray is part 10-02758.
These gyros are new, outright.
No, it is not a direct replacement.
This is an air driven(vac) gyro.
