Nine Inch Venturi

$162.53/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 15052
MFR Model# 15052

Overview

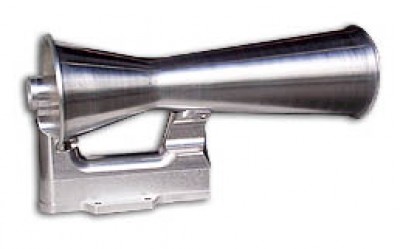

A venturi is a relatively low cost means of producing the vacuum to operate gyroscopic instruments (turn/bank, directional gyro and artificial horizon). It is mounted on the fuselage, parallel with the longitudinal axis of the aircraft. As the aircraft moves through the air, suction is created in the venturi throat. Since the venturi throat is connected by a tube to the gyro instrument case, air is sucked out of the instrument, causing air to enter an inlet port and strike the gyro rotor, which then spins rapidly and activates the instrument. A vacuum regulator and/or restrictor valve may be needed to limit the vacuum to that required for proper instrument operation This super venturi is similar in appearance to the 4" venturi but with redesigned air passages & re- contoured, long horn; 11-1/4". Pulls enough vac- uum to operate a gyro horizon, directional gyro & turn/bank. Must be used with a suction regulator.
Made in USA

Specifications

  • Pulls 6-7 inches at 75 MPH
  • Is capable of running two gyros
  • The bolt hole spacing is 1.5 inch squared
  • Outlet is 1/4 NPT

Reviews

Hi Guys and Girls Your promptness and service are excellent as usual The Venturi arrived packed in bubble wrap and well boxed, however there were a couple of small dents in the spun aluminium tube, My guess is they happened early on in the game maybe on the shelf or at the manufacturers! I can repair to my satisfaction so no issues, just thought you should know. Best regards Nigel Ellis

Nigel E
October 17, 2019

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What cruise speed is needed to have reliable vacuum from this venturi?

The only available speed information is that it pulls 6-7 inches at 75 MPH.

Q: What regulator do you use with the Nine Inch Venturi?

A popular option is the RAPCO RA2H3-19 Vacuum Regulator part #10-04780.

Q: The overview says that this will power three instruments and the specifications say that it will power two instruments. Can you clarify? How many vacuum instruments will this run? I have a Gyro horizion, and a DG on my tri pacer and want to use this as a vacuum source.

This unit pulls enough to operate a gyro horizon, directional gyro & turn/bank. It must be used with a suction regulator to function.

Q: Is this 9 inch Venturi FAA Approved?

No, it is not FAA approved.
