Hb207 Alfa

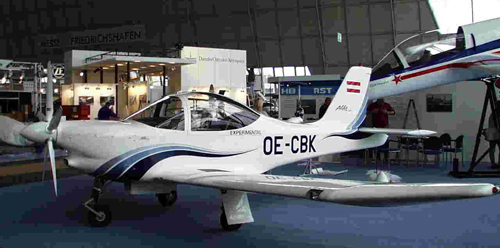

The Alfa is a European kit built aircraft. The Alfa is an all-metal low-wing, tri-cycle gear airplane with side-by-side seating. The aircraft is 19.35ft in length and has a wing span of 29.5 ft. Suggested engine for the plane is a 110 HP Volkswagen Porsche G 2 2.400 air cooled boxer engine. The HB207 cruises at 140 kts with an fuel burn of 3.5 US Gal/hr and stalls (flaps down) at 40 kts. It features a 5 blade constant speed prop, retractable landing gear, and detachable wings.

Specifications:

Kit Price w/o Engine: ~$19,500

Plans Price: N/A

Number of Seats: 2

Building Materials: M,A,FG

Building Time: ~1000 HRS

Standard Engine: VOLKSWAGON 2400/110 HP

Horsepower: 100-160

Wing Span: 29.5 Ft.

Wing Area: 102.3 Sq. Ft.

Empty Weight: 970 Lbs.

Gross Weight: 1410 Lbs.

Takeoff Distance: 620 Ft.

Landing Distance: 850 Ft.

Cruise Speed: 155 MPH

Top Speed: 170 MPH

Fuel Capacity: 26.4 Gal.

Range: 750 Miles

For more info contact Alfa Service Team GmbH:
M hlgarten 22, D-99094 Erfurt M bisburg Germany
Ph +49-4403-939-187 • Fax: +49-4403-64929
vertrieb@hb207alfa.com • Click Here for Website
