Murphy Aircraft MFG. Ltd.

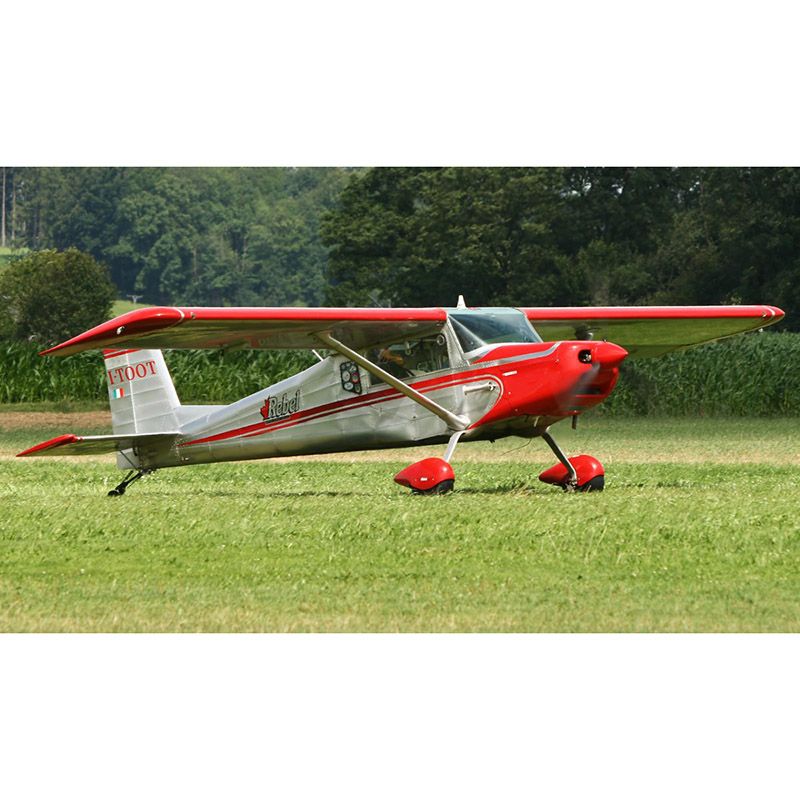

Murphy Rebel

The Murphy Rebel is an all-metal, 2-seat, high wing aircraft constructed using semi-monocoque construction techniques. Built for strength and longevity, the Rebel is designed to endure tough bush plane-like conditions with low maintenance costs. Designed by Darryl Murphy to accommodate a variety of powerplants including the Rotax 912, Lycoming O-235 and O-320. The Rebel is easily stored or trailered due to its removable wings and folding tailfeathers. The cabin is a comfortable 44" wide and provides a large wraparound instrument panel, skylights, and large doors. Pre-aligned punched holes eliminate the need for jigs and special tools, making the Rebel a simple aircraft to build. The Rebel is at home on floats and skis or on standard wheels.

Model Name Rebel
Engine model O-320 Rotax 912UL
Horsepower 160 80
Gross weight (lb.) 1650 1450
Empty weight (lb.) 875- 950 650- 700
Useful load (lb.) 700-775 750-800
Wing area (sq. ft.) 150 150
Takeoff run (ft) 300 450
Landing roll (ft) 400 300
Stall, power off (mph) 44 40
Vne (mph) 151 143
Cruise @ 75% (mph) 120 90
Rate of climb (fpm) 1200 500
Fuel capacity (gal) 44 44
Range (nm) 637 765

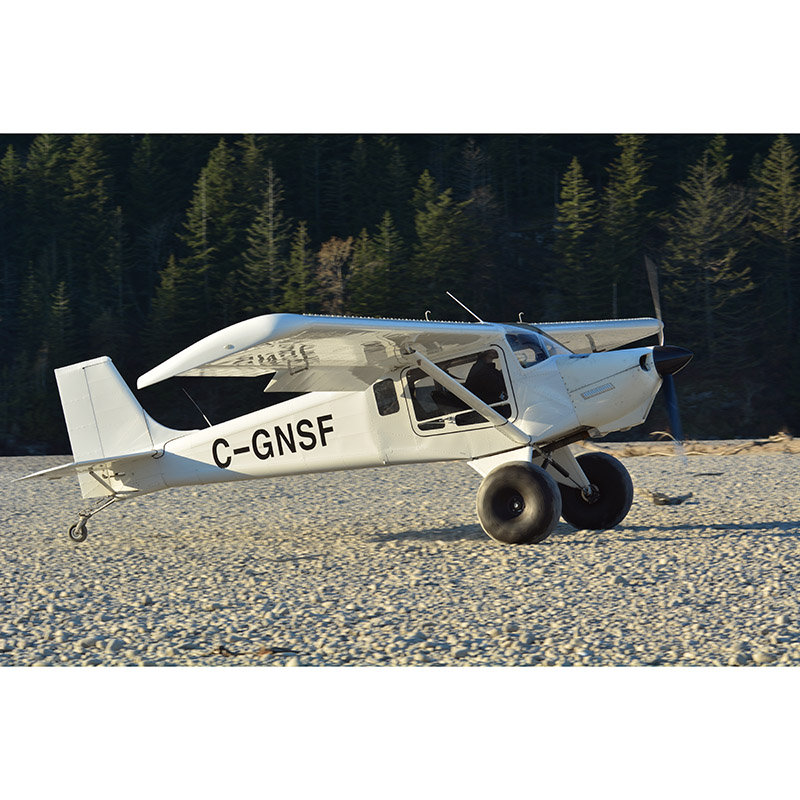

Murphy Radical

The Murphy Radical is a culmination of nearly four decades of aircraft design and building experience, offering a robust and high-performance bush plane. It is designed to accommodate even the largest pilots comfortably, with ample head, leg, and shoulder room. The two large up-swinging doors ensure easy entry for all, including those with limited mobility. The Radical incorporates the best ideas and design practices from all Murphy aircraft, making it a true Short Takeoff and Landing (STOL) bush aircraft. Whether you’re flying in the bush, landing on water, or gliding over snow, the Radical is designed to meet the demands of adventurous pilots.

Model Name Radical
Engine model O-360
Horsepower 180
Gross weight (lb.) 2100
Empty weight (lb.) 1150
Useful load (lb.) 950
Wing area (sq. ft.) 180
Takeoff run (ft) 250
Landing roll (ft) 300
Stall, power off (mph) 40
Vne (mph) 140
Cruise @ 75% (mph) 125
Rate of climb (fpm) 1000
Fuel capacity (gal) 48
Wingspan (ft) 36

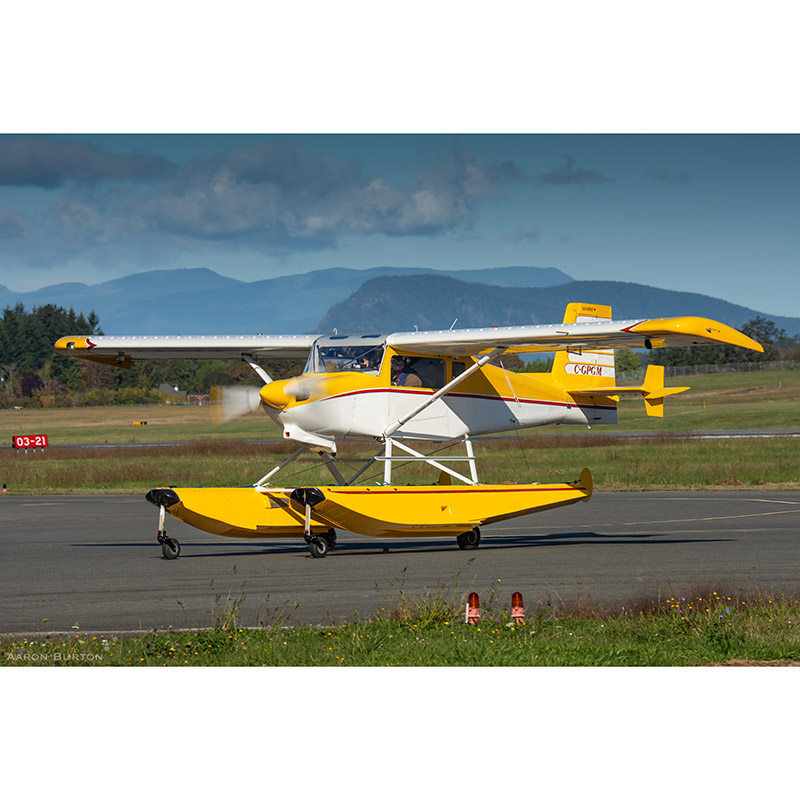

Murphy Elite

The Murphy Elite is an all-metal, 2-3 seat, high wing aircraft constructed using semi-monocoque construction techniques. Built for strength and longevity, the Elite is designed to endure tough bush plane-like conditions with low maintenance costs. Designed by Darryl Murphy to accommodate a variety of powerplants including the Lycoming O-320 and O-360. The Elite, with a wingspan 2 feet longer than the Rebel’s 30 feet, is very popular on floats, either straight or amphibious. We offer kits for 1500 and 1800 series, both straight and amphibious. Pre-aligned punched holes eliminate the need for jigs and special tools, making the Elite, and our float, simple to build.

Model Name Elite
Engine model O-320 O-360
Horsepower 150 180
Gross weight (lb.) 1800 1800
Empty weight (lb.) 950 980
Useful load (lb.) 850 820
Wing area (sq. ft.) 152 152
Takeoff run (ft) 600 470
Landing roll (ft) 400 400
Stall, power off (mph) 46 46
Vne (mph) 157 157
Cruise @ 75% (mph) 127 132
Rate of climb (fpm) 1000 1500
Fuel capacity (gal) 44 44
Range (nm) 647 594

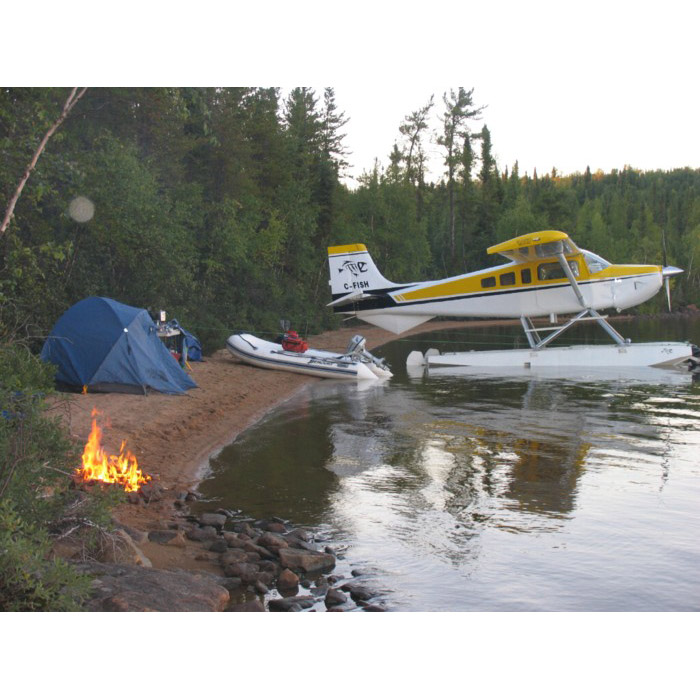

Murphy Moose

The Murphy Moose is a versatile, high wing, aluminum kit aircraft designed to accommodate four to six seats. Evolved from the Super Rebel 2500, the Moose has a gross weight of 3,500 lbs and a useful load ranging from 1,550 to 1,850 lbs. It is engineered for performance, utility and ease of assembly. It is wider than a Cessna 180 and has removable seats. The Moose has two main doors and an extra-large cargo door for easy loading. Enjoy turboprop power with a PT-6 turbine or mount an M-14 radial engine for a classic Beaver sound. Now available with tricycle gear.

Model Name Moose
Engine model IO-540 M-14P PT6- 20A LS 3
Horsepower 300 360 550 480-525
Gross weight (lb.) 3500 3500 3500 3500-3800
Empty weight (lb.) 1650-1750 1700-1900 1520 1850-1950
Useful load (lb.) 1750-1850 1800-1900 1980 1650-1850
Wing area (sq. ft.) 182 182 182 182
Takeoff run (ft) 800 600 200 475
Landing roll (ft) 600 600 260 500
Stall, power off (mph) 58 58 58 58
Vne (mph) 189 189 189 189
Cruise @ 75% (mph) 143 150 160 175-180
Rate of climb (fpm) 1500 1500 3400 1500
Fuel capacity (gal) 100 100 100 100
Range (nm) 530 690 - 950


For further information contact
Murphy Aircraft Mfg. Ltd,
8155 Aitken Road,
Chilliwack, BC V2R 4H5,Canada
604-792-5855
Email: sales@murphyair.com
Website: https://MurphyAir.com
