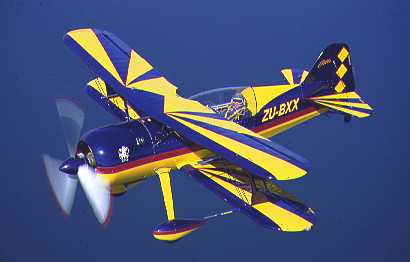

Pitts Model 12

The latest biplane designed by Curtis Pitts. The Pitts Model 12 is a 2 place fully aerobatic biplane designed specifically around the 360 HP (400hp) Russian built Vedeneyev M-14P (PF) radial. Stressed to +9 -7.5g at full gross weight of 2250lb with 750lb useful load. It has a 239 MPH Vne, 175 MPH Cruise @70% Power, and 64 MPH Stall Speed. 3200+ Feet per Minute Climb Rate, 300+ Deg. per Sec. Roll Rate. Aerobatic in design, the Pitts model 12 is an excellent cross country airplane with a 520 Mile Range. We are a prime supplier for Pitts Model 12 kits.



Specifications:
  • Kit Price w/o Engine: ~$46,388
  • Plans Price: $315
  • Number of Seats: 2
  • Building Materials: T,W,F,S
  • Building Time: ~2000 HRS
  • Standard Engine: M-14P/360 HP
  • Horsepower: 360-450
  • Wing Span: 23 Ft.
  • Wing Area: 154 Sq. Ft.
  • Empty Weight: 1450 Lbs.
  • Gross Weight: 2250 Lbs.
  • Takeoff Distance: 300 Ft.
  • Landing Distance: 900 Ft.
  • Cruise Speed: 175 MPH
  • Top Speed: 239 MPH
  • Fuel Capacity: 54 Gal.
  • Range: 525 Miles
