Raf 2000

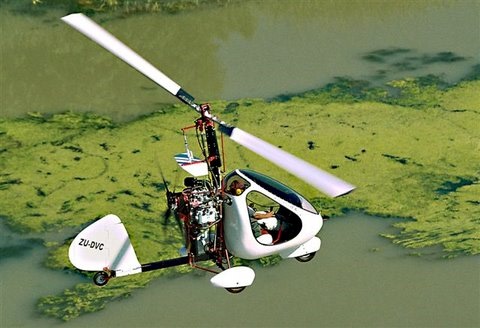

The performance specs of the RAF 2000, competitive price and one of the lowest operational costs ($20-30 per hour) make it one of the most popular auto-gyros available today. The 2-place rotorcraft is available in kit form and comes in two versions, standard and GTX SE versions. The GTX SE includes a variety of performance enhancing options. Standard engine on both models is a 130 hp four cycle Subaru EJ22. Fuel Capacity for the RAF 2000 is 23 US gallons and fuel consumption is 6 gph at 80%. Engine, propeller and instrument packages are included in RAF kits. The RAF 2000 has a dry weight of 760 lbs. Performance specs for single occupant: Min. speed: 10-12 mph; Max. speed: 100 mph; Cruise: 80 mph; Take Off Roll: 0-75 ft.; Landing Roll: 0-10 ft.; Rate of Climb: 1200 fpm.



Specifications:
  • Kit Price w/o Engine: ~$51,843
  • Plans Price: N/A
  • Number of Seats: 2
  • Building Materials: C,A
  • Building Time: ~150 HRS
  • Standard Engine: SUBARU /130 HP
  • Horsepower: 100-130
  • Wing Span: 30 Ft.
  • Wing Area: N/A
  • Empty Weight: 760 Lbs.
  • Gross Weight: 1540 Lbs.
  • Takeoff Distance: 75 Ft.
  • Landing Distance: 10 Ft.
  • Cruise Speed: 75 MPH
  • Top Speed: 100 MPH
  • Fuel Capacity: 23 Gal.
  • Range: 420 Miles



  • For further information contact Rotory AF Rotorcraft:
    PO Box 2071 Upington 8800 South Africa
    Phone: +27 54 331 3534 • Fax: +27 54 332 3628
