Safari

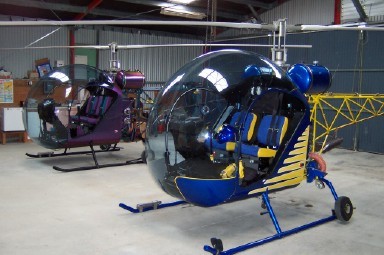

Designed for the ruggedness and reliability crucial for flying in remote areas, the Safari is powered by a Lycoming O-360 180 Hp aircraft engine, maintaining the highly trustworthy flying abilities of this classic design. Formed from 4130 Chromoly aircraft steel tubing, pre-welded at the factory featuring the maximum viewing characteristics of the certified Bell 47 bubble, this system is driven by gear and shaft, giving maximum performance. The main and tail rotor shafts are made from Titanium. Cruising speed is 85 mph with climb rate of 1,000 fpm & an operating ceiling of 10,000ft. Max. speed is 100mph.


For more information contact CHR International:
3553A Industrial Park Drive
Marianna, FL 32446
phone: (850) 482-4141
e-mail: sales@SafariHelicopter.com • www.SafariHelicopter.com


Specifications:
  • Kit Price w/o Engine: ~$150,000
  • Plans Price: ~$150
  • Number fo Seats: 2
  • Building Materials: T
  • Building Time: ~700 hours
  • Standard Engine: Lycoming O-360-C2c / 160 HP
  • Horsepower: 160-180 HP
  • Wing Span: 25 Ft.
  • Wing Area: N/A
  • Empty Weight: 1050 Lbs.
  • Gross Weight: 1600 Lbs.
  • Takeoff Distance: 0 ft
  • Landing Distance: 0 Ft.
  • Cruise Speed: 85 MPH
  • Top Speed: 100 MPH
  • Fuel Capacity: 28 Gal.
  • Range: 200 Miles
