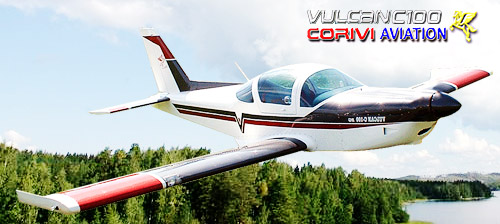

Vulcan C100

Vulcan C100 is a real Sport Pilot aircraft available both fixed and retractile landing gear. Designed for italian ultralight aviators it is a very beautiful aircraft inspired to Frati’s Falco line. All metal construction it can support engines from 80 hp to 150 hp. Suggested engine Rotax 912 series.

Dimensions and Characteristics:

Number of Seats: 2

Horsepower: 80-150 HP

Length: 21.45 Ft. (6,50m)

Height: 7.59 Ft (2,30m)

Cross Wheel Distance: 8.25 feet (2.50 m)

Electric Actuated Flaps

Retractile Landing Gear – Pneumatic Actuated

Stabilizer Trim – Electric Actuated

Engine: ROTAX 912 ULS

Propeller: Carbon Composite Three Blade – On Round Pitch Variable

Empty Weight: 621 Lbs. (282 Kg)

Fuel Capacity: 24.96 US Gallon (96 litres)

Materials:

Main Parts in 2024 Avional T3 Alloy

Landing Gear and Engine Mount in 4130 Steel

Bolt in 8.8 Steel

Engine Cover and Cockpit Fairing in Fiberglas

Performances:

Max Horizontal Speed: 140 Kts (260 Km/h)

Cruise Speed (75% setting): 124 Kts (230 Km/h)

Top Speed: 161 MPH

Stall Speed (Flaps down): 34 Kts (62 Km/h)

Climb Rate: 1200 Ft/min (6 m/sec)

Take Off Run: 726 Ft (220 m)(1617 Ft with 50 Ft Obstacle)

Landing Run: 462 Ft (140 m)

Max Range: 653 nm (1210 Km)5h30’ with 30’ Reserve)

Max Efficiency: 12

CORIVI AVIATION
Via Puglia, 70/D - 95125 Catania - CT (Italy)
Email: corivi@corivi.com • Website: www.corivi.com
Phone/Fax: (0039) 095 330915
