Home / Landing Gear / Wheels / Cleveland /Cleveland 600 X 6 Main Wheel Model No. 40-97A
Main Image

Cleveland 600 X 6 Main Wheel Model No. 40-97A

75 Reviews 7 Answered Questions
From $0.08 to $1368.00
Prices below incude GST

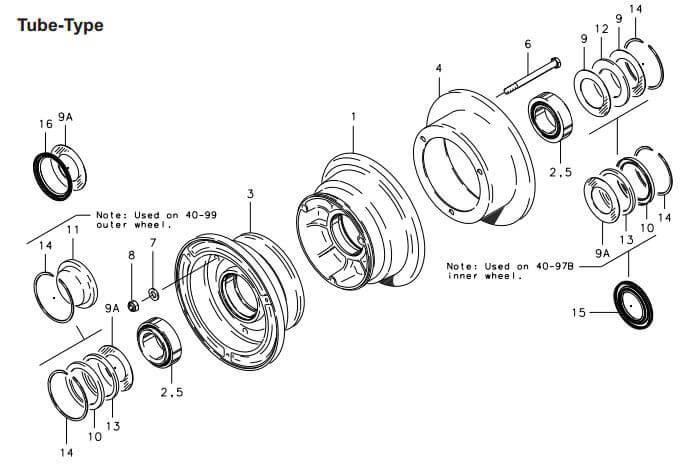

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Figure # Part Number Description Qty / 40-97A Price Buy
Complete Assy.
40-97A
Cleveland Wheel Assembly 40-97A--$1504.80
Quantity
1
161-03000
Inner Wheel Half Assembly1$719.40
Quantity
2
05-14605
Cup-Bearing1$194.53
Quantity
3
162-02700
Outer Wheel Half Assembly1$723.80
Quantity
4
164-02601
Brake Disc1$213.13
Quantity
5
214-00200
Cone-Bearing1$194.53
Quantity
6
AN5-35A
Bolt3$1.72
Quantity
7
AN960-516
Washer3$0.09
Quantity
8
AN365-524A
Nut3$0.30
Quantity
9A
153-00300
Ring-Grease Seal1$30.41
Quantity
14
155-00100
Snap Ring2$24.75
Quantity
15
154-12000
Molded Grease Seal1$61.33
Quantity
16
154-12400
Molded Grease Seal1$54.84
Quantity
Subtotal $0.00
Add to Wishlist

Overview

MODEL NO. 40-97A wheel with brake disc and 1-1/2" dia. bearings fits Cessna 172, 175, 182
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

High quality Nylocks at a decent price.

Marty T Verified Purchase

MS21044N5 Nut, Elastic Stop
November 5, 2024

quality, its what I want above all else

Mr C Verified Purchase

Washer, Flat AN960-516
October 30, 2024

Daryl P Verified Purchase

Cleveland Bearing Cone 214-00200
October 23, 2024

Quality Product as expected from AS&S.

Steve D Verified Purchase

Washer, Flat AN960-516
October 22, 2024

Dutch W Verified Purchase

Washer, Flat AN960-516
September 29, 2024

Good quality and view.

Julian S Verified Purchase

Washer, Flat AN960-516
September 27, 2024

Pleased with the purchase

Roy K Verified Purchase

Washer, Flat AN960-516
September 20, 2024

Rod B Verified Purchase

Washer, Flat AN960-516
August 24, 2024

Michel C Verified Purchase

Washer, Flat AN960-516
August 15, 2024

I needed a few AN5 nylocks, and as usual, Aircraft Spruce had them.

Marty T Verified Purchase

MS21044N5 Nut, Elastic Stop
August 3, 2024

Q&A

Submit

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this wheel assembly intended for use with brake assembly 30-96?

No, wheel assembly 40-97A is intended for use with the following brake assemblies: 30-63A, 30-63, 30-56A, 30-56. Brake assembly 30-96 is used with wheel assembly 40-131 per the Cleveland parts catalog.

Q: Does wheel assembly 40-97A attach with a U type fork or C type fork?

This is a main wheel assembly and is attached to the main landing gear leg with a straight axle. It sounds like you are looking for a nose wheel. Please contact our sales staff by clicking the "Contact Us" link in the upper right portion of the web page. Our sales agent will need to know the aircraft year, make, and complete model number to identify.

Q: This wheel assy. 40-97A, is also used on the Cessna 175, not just the 172 and 182.

Thank you for the information. We will post for customer reference.

Q: Does 40-97A come fully assembled? Is this also the correct wheel for a 1967 C150 G?

It is sold as a complete wheel and per the application guide it is correct for that aircraft.

Q: Does Assembly 40-97A come with the break disk 164-02601, Cup-bearing, bearings, grease seals, snap rings, ect.? If not, what all is included with this assembly?

Yes everything is included. Discs, bearings, seals, etc etc.

Q: Part number for item #8 which is a nut?

#8 is AN365-524A

Q: What are the part numbers for items #10 & #13?

#10 would be 153-01500 and #13 would be 154-01300.
