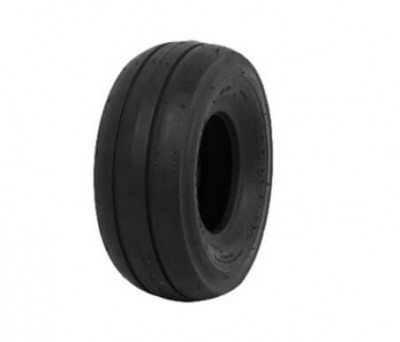

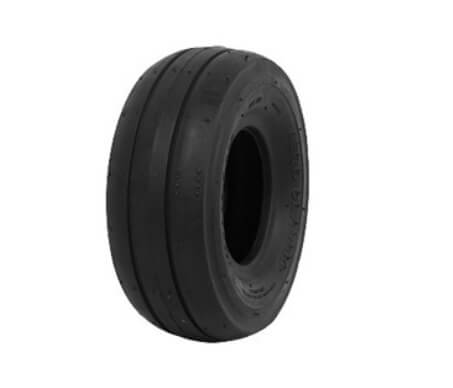

Aero Classic Flat Rib Tire 11/400-5 8Ply
MFR Model# DTR5582
Overview
| Aero Classic is our proprietary line of over 50 aircraft tires and tubes made to meet or exceed the original specifications. The Aero Classic range boasts tires and tubes from 8" diameter for tailwheels, up to 56" diameter C-130 inner tubes...and everywhere in between. |
Specifications
- Speed Rating: 100 mph
- Load Rating: 650 lbs
- Ply Rating: 8
Reviews
Perfect fit for our Helicopter Tug
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
Used tire with tube, good quality, mounted easily.
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
Solved Shimmy issue in the RV9A. Heavy walled tire.
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
Already using this tire on my Pitts S1S with good results. The order was for replacements. Good quality, and glad they are available.
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
Verified Purchase
Aero Classic Tubeless Tire 11-400-5 8Ply
These are the standard main tires on Staudacher 300 and PANZL S330 aircraft. I own the latter. Your choice for an 11/400-5 tire are the Cheng/Shin (Lamb) or the Aero Classic. The Aero Classic 8 ply is by far the most resilient and therefore longest lasting, typically running 2-3x the number of cycles as the Lamb equivalent. Definitely worth the premium! Aaron McCartan
I am very happy with my new Aero Classic tubeless tires. I installed them and flew them to Oshkosh, Marion Indiana, Buena Vista Colorado and back home to Tehachapi CA. They worked perfectly, never lost pressure and I flew as high as 14,000 feet in Colorado. Love my new tires, thanks Jim. Mike Melvill
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The outside diameter of this tire is 11 inches.
The outside diameter of this tire is 11 inches.
Yes, this requires an 11/400 X 5 tube. Part number 15-04651 can be used for example.
See part # 15-04651.
Speed Rating: 100 mph
Those are all the same sized tire. They have a diameter of 11" they are 4" wide and they are used with a 5" wheel. The 500-5 is 5" wide and used with a 5' wheel. I believe they don't add the third measurement be cause it is a "standard wheel" and the diameter can vary slightly from one manufacturer to the other.
The tire itself is rated as tubeless but you would have to have a tubeless/sealed wheel to use it as such. Most do not which is why we recommend the tube.
Approx 4 lbs.
The notes on the tire state the max load is 650lbs at 70 psi.
