Azusa 4-1/2 Inch Brake Band With Pin

$22.55/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 06-00662
MFR Model# 2255

Overview

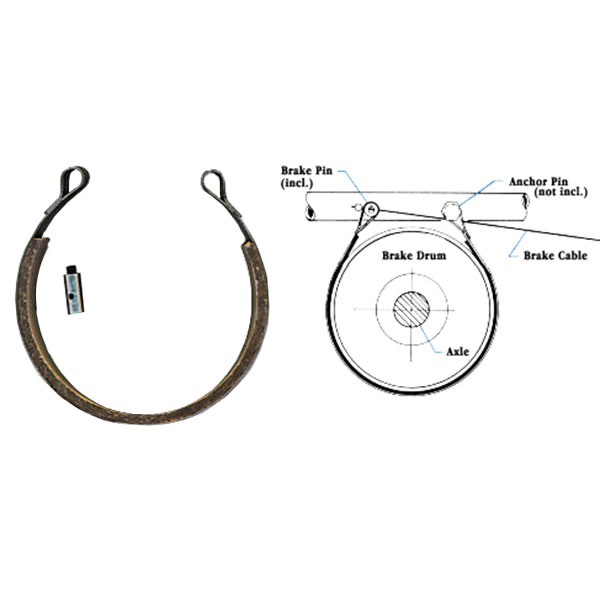

Band Brakes are simple, effective and economical for a variety of small, light-duty small vehicles, or as parking brakes. They were designed to work with either 4" or 4-1/2" diameter drums, but may work well with drums ranging in size from 3-7/8" through 4-5/8" O.D.

• 2 Piece Bonded Lining
• Comes with 1 band and 1 pin
• Riveted End/Mounting Brackets
• Steel Brake Pin with Cable Hole Included
• Band Brake for 4.5" drum - Packaged PN 2555

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much does this Azusa assembly weigh?

06-00662 weighs about 0.60 lbs.

Q: What is the width? I need 7/8 or slightly smaller.

The brake drum band is 7/8.
