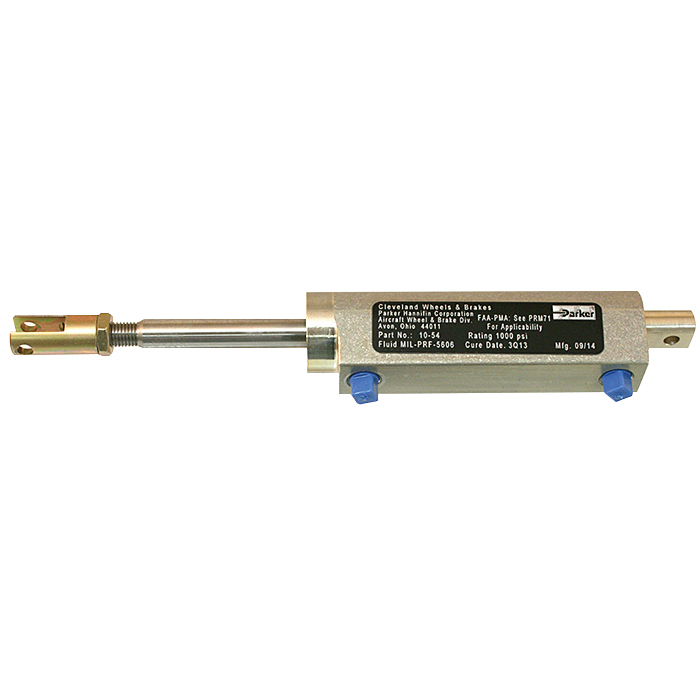

Cleveland Master Brake Cylinder Model 10-54

$900.90/Each
Price Includes GST
Quantity
Add to Wishlist
Part# 06-01214
MFR Model# 010-05400

Overview

Spring-loaded piston type assembly without reservoir. Simple design assures long troublefree service. Pin center length 7.88". Bore 5/8". Stroke 1.62". Wt. .45 oz. Ports in-line, no fittings
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this a push or pull type? I need the pull type, and don't see that info on any of the master cylinders.

P/N 06-01214 is a push type unit. We do not stock a pull type unit. Contact sales with the Cleveland part number and we will be happy to special order it for you.

Q: What is the thread on the shaft of this Cleveland Master Brake Cylinder 10-54? I have to be sure it's compliant with my existing installation.

The threads on P/N# 06-01214 are 5/16-24.

Q: Is this part number 06-01214 (Cleveland brake cylinder model 10-54) FAA TSO Approved and legal for a certified aircraft?

Yes, it is a TSO'd unit. The packing slip refers to it as FAA TSO'D, PMA, OR STC'D APPROVED PART.

Q: Does this 10-54 MC need an external reservoir?

Yes, you will need to use an external reservoir if you are using a 10-54 master cylinder.

Q: What is different between 10-54 and 10-54A?

The 10-54 has a 8" installed length and the 10-54a is shorter at 7.28". Other than that they are the same.

Q: Do these need to be mounted vertically or horizontally?

This does not have a mounting position spec.

Q: Is part number 199-516 the applicable kit for 10-54 Cleveland brake cylinder?

Yes that is correct.
