Matco Centrifugally Cast Aluminum Nosewheel Nw60Cc

From $151.75 to $209.95
Prices below incude GST
Description Part Number Price Buy
Matco Nose Wheel Assembly NW60Cc
06-00557
$166.93
Quantity
Matco Nose Whl Assembly NW60Cc.75
06-00558
$166.93
Quantity
Matco Nose Whl Asy NW60Cc.75R/
06-00559
$230.94
Quantity
Subtotal $0.00
Add to Wishlist

Overview

NW60CC

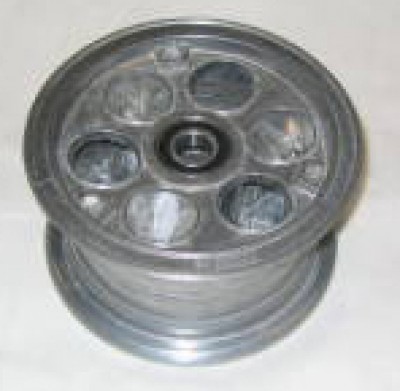

MATCO mfg produces the NW60CC inch nosewheel for use with aircraft requiring less than 660 pounds nosewheel load.

The NW60CC uses 0.625 inch Ball bearings, is 4.38 " wide and weighs approximately 3.22 lbs. The NW60CC.75 uses 0.75 inch Ball bearings, is 4.38" wide and weighs approximately 3.22 lbs. The NW60CC.75R/6" uses 0.75 Taper/Roll bearings, is 4.38" wide and weighs approximately 3.52 lbs.

The NW60CC and NW60CC.75 are designed for the following standards:
Static Capacity: 660 LBS
Load Limit: 2000 LBS

The NW60CC.75R/6" is designed for the following standards:
Static Capacity: 1185 LBS
Load Limit: 3560 LBS
