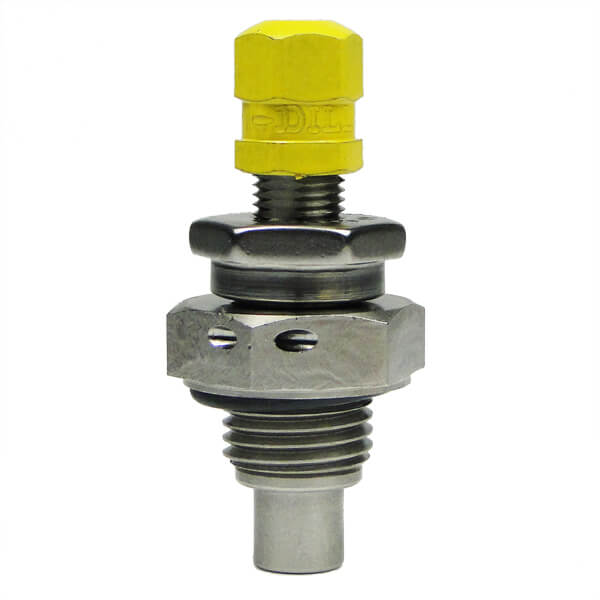

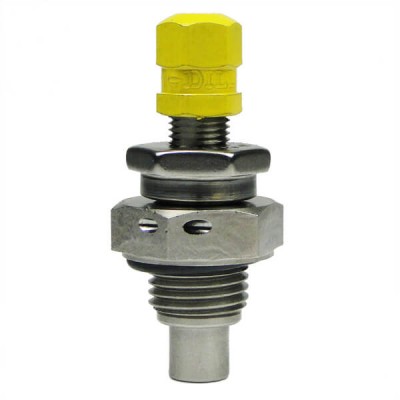

AN6287-1 Strut Valve
MFR Model# 4361S
- JUMP TO
- Overview
- Documents
- Reviews
- Q&A
- View in Catalog
Overview
NOTE: Instructions available via PDF below. Not included in box with item. Please print and use as needed. AN6287-1 strut valve for operating pressures up to 3000 PSI. Consists of a three-piece stainless steel body, high-pressure valve core and MS20813-1B cap. |
Documents
- Instructions Sheet (PDF)
- Product Sheet (PDF)
Reviews
Have ordered this before..replaced c150 nose strut...
Verified Purchase
AN6287-1 Strut Valve 4361S
Works exactly as original.
Verified Purchase
AN6287-1 Strut Valve 4361S
Great price and availability!
Verified Purchase
AN6287-1 Strut Valve 4361S
High quality product, seals the nitrogen pressures and I do not have to rely on only the Schrader valve to seal. Once you understand how the valve works, it is easy. Release the locking, turn out by hand until it stops then wrench past the resistance to open. Plautus use this feature to service landing gear struts.
Verified Purchase
AN6287-1 Strut Valve 4361S
Right part, fair price. Don’t try to remove it from the strut by the 5/8 nut, the base nut is 3/4, and that’s the one if you are going to do fluid service. The 5/8 only needs small amount of CCW turn to allow your strut gas to pass via the depressable valve stem. If you need to release a little after overfill, only a crack open of the 5/8 and then a few quick fingernail stabs on the stem will do the trick if it’s under any weight load. Make sure rubber o-ring is there (comes with), and my Cessna 182L calls for AN901-5A gasket also. Parts Manual calls it an o-ring.
Verified Purchase
AN6287-1 Strut Valve 4361S
Thumbs up
Verified Purchase
AN6287-1 Strut Valve 4361S
They work great
Verified Purchase
AN6287-1 Strut Valve 4361S
Verified Purchase
AN6287-1 Strut Valve 4361S
Very Good Product
Verified Purchase
AN6287-1 Strut Valve 4361S
Verified Purchase
AN6287-1 Strut Valve 4361S
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We do not have the replacement parts list for each aircraft available. Please check your aircraft manual and parts list to verify correct replacement parts.
Use gasket AN6227B-4 for this strut valve. (See Accessories)
The manufacturer is AVALCO. The dimensions are 1.784" in length with a 3/4 wrench size. This will be the widest part of the unit. It will have a 1/2-20 thread size.
Per the supplier: No this is not a replacement for that part.
The manufacturer does not recommend replacing the o-ring, you would need to replace the whole unit.
We do not see a cross reference from 0543036-1 to this part number. We could special order the 0543036-1. Please contact our sales team for pricing and lead time.
Approx 1.40 oz.
