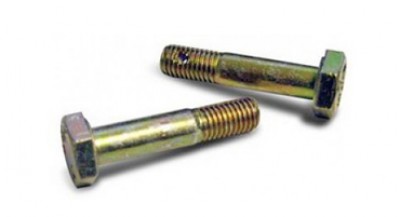

AN Bolt Assort Undrilled

$100.93/Kit
Price Includes GST
Part# 04-00105

Overview

204-piece Undrilled Assortment
 P/N 04-00105

Below with Cabinet
P/N 04-00110

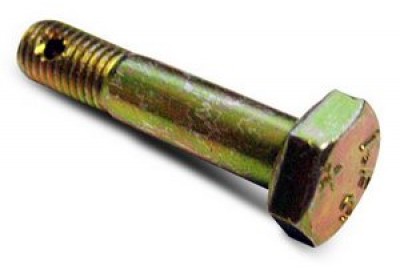

Bolt Assortment - Undrilled
Qty. Part No.
10 AN3-3A
10 AN3-4A
10 AN3-5A
10 AN3-6A
10 AN3-7A
10 AN3-10A
4 AN3-11A
4 AN3-12A
4 AN3-13A
4 AN3-14A
4 AN3-15A
4 AN3-16A
4 AN3-17A
4 AN3-20A
4 AN3-24A
4 AN4-4A
4 AN4-5A
4 AN4-6A
4 AN4-7A
4 AN4-10A
4 AN4-11A
Qty. Part No.
4 AN4-12A
4 AN4-13A
4 AN4-14A
4 AN4-15A
4 AN4-16A
4 AN4-17A
4 AN4-20A
4 AN4-24A
4 AN5-5A
4 AN5-6A
4 AN5-7A
4 AN5-10A
4 AN5-11A
4 AN5-12A
4 AN5-13A
4 AN5-14A
4 AN5-15A
4 AN5-16A
4 AN5-17A
4 AN5-20A
4 AN5-24A

204-piece Drilled Assortment
 P/N 04-00115

Above with Cabinet
 P/N 04-00120

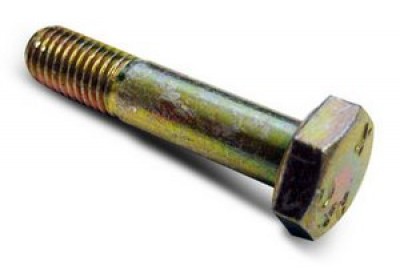

Bolt Assortment - Drilled
Qty. Part No.
10 AN3-3
10 AN3-4
10 AN3-5
10 AN3-6
10 AN3-7
10 AN3-10
4 AN3-11
4 AN3-12
4 AN3-13
4 AN3-14
4 AN3-15
4 AN3-16
4 AN3-17
4 AN3-20
1 AN3-24
4 AN4-4
4 AN4-5
4 AN4-6
4 AN4-7
4 AN4-10
4 AN4-11
Qty. Part No.
4 AN4-12
4 AN4-13
4 AN4-14
4 AN4-15
4 AN4-16
4 AN4-17
4 AN4-20
4 AN4-24
4 AN5-5
4 AN5-6
4 AN5-7
4 AN5-10
4 AN5-11
4 AN5-12
4 AN5-13
4 AN5-14
4 AN5-15
4 AN5-16
4 AN5-17
4 AN5-20
4 AN5-24

ECONOMY COMBINED AN BOLT ASSORTMENT

Both drilled and undrilled assortments shown above
P/N 04-00125

Both assortments shown above with storage cabinet
P/N 04-00130

Reviews

Got what I ordered quickly. Thank-you. Everything comes individually wrapped prepare for plastic bags!

Alan B Verified Purchase

AN Bolt Assort Undrilled

September 9, 2023

Every last bolt that was on the list was there!

Mike
June 18, 2019

I live 1500km from nearest AN bolt supply. It is pleasing to have my own supply. Thank you Aircraft Spruce

David F
July 26, 2018

Great price for a great product.

Tom B
July 12, 2018

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the Economy AN Bolt Assortment Kits come with washers and nuts?

No, these assortments will include the bolts only and the optional cabinet.

Q: Do the packs of hardware come with labels?

Yes, each type of hardware will be bagged and identified.
