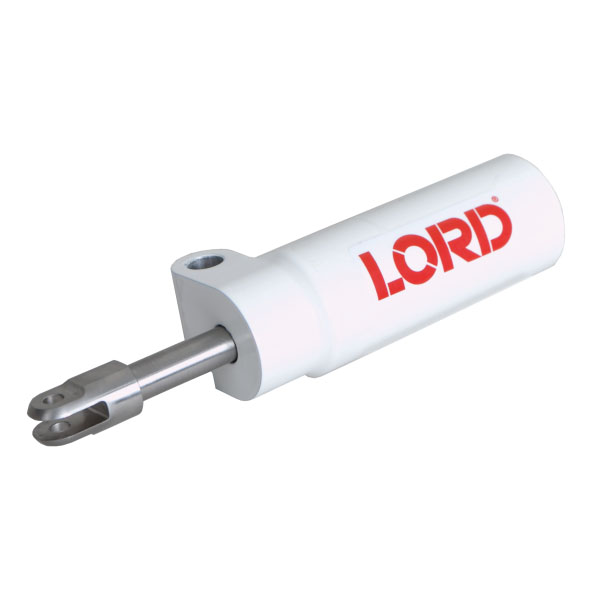

Cessna Shimmy Dampener SE1068-5
MFR Model# SE1068-5
| PN | Lord # |
|---|---|
| 05-02610 | SE-1068-5 Approved Replacement for Cessna # 0743624-1 |
Overview
|
Note: Please review the application guide to confirm the correct part number for your aircraft. The LORD® Fluid-Free Shimmy Damper offers high-performance damping with a maintenance-free design. It uses surface-effect technology to provide consistent damping for nose gears. Instead of using fluids to resist motion, our Shimmy Damper features a unique rubber formulation with a high-tech lubricant to absorb nose wheel shimmy. Since there is no fluid, this damper will not leak. Accelerated life testing of the LORD Shimmy Damper has demonstrated that it provides targeted damping after over 5,000 ground-air-ground duty cycles. This represents a product life of more than 10 years of usage on a typical high-use aircraft. NOTE: Installation hardware not included |
Features
- No Hydraulic Fluid: No periodic leaks or loss of damping. No servicing required. Reduced wear of nose gear linkages. Lower operating costs.
- Consistent Damping from -30° to 150°F: No loss of damping at temperature extremes. Reduced wear of nose gear linkages. Lower operating costs.
- No Performance Degradation Over Time and Use: Reduced wear of nose gear linkages. Lower operating costs.
- Large Diameter Shaft: Increased durability. Lower operating costs.
- Simple Design: High reliability. Lower operating costs.
- Form, Fit and Function Compatible: Simplicity of use (one-for-one replacement). Compatibility with existing installation.
Specifications
Benefits
- Valuable – Simple design provides high reliability and lowers operating costs.
- Efficient – Simplicity of use (one-for-one replacement) and compatible with the existing installation.
- Reliable – Large diameter shaft increases durability and reduces wear of nose gear linkages. No performance degradation over time and use.
- Versatile – Consistent damping from -30° to 150°F
Documents
Reviews
Although expensive, definitely removed a bad shimmy on my recently purchased 182.
Verified Purchase
Cessna Shimmy Dampener SE1068-5
new shimmy dampener and new bushings took all shimmy out of nose wheel.
Verified Purchase
Cessna Shimmy Dampener SE1068-5
Easy install. The bolts and bushings worked great. The pin was short, and had to use the longer one that we had on before because it was in good shape. Feels good on landing.
Verified Purchase
Cessna Shimmy Dampener SE1068-5
This is a great product. Had shimmy problems every couple of years on my 210. Installed the Lord unit and have not had a shimmy for more than 10 years. It costs a bit more and is worth every penny.
Delivery was prompt. All necessary hardware supplied and component worked fine.
Awesome product that I hope lasts a long time. I was rebuilding my Cessna damper over and over again.
Looking forward not having to service damper any more. Delivered on time and as promised.
My Beech one had the inner piston seized due to lack of maintenance. While pricey, the Lord is built well and feels solid. No more occasional shimmy.
Works great on my 172m Two thumbs up. No more rebuilding the old one!
Had this installed in a PA28 five years ago and the dampener worked well for about three years, then performance started to decay and now needs replacement. Very short life given the high price. My mechanic says its not even serviceable.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The Lord shimmy damper # SE-1069-3 weighs approximately 1.07 lbs. The other shimmy dampers should be similar in weight.
It is a direct replacement.
