Cessna STC C100-114Ir Int Kit
MFR Model# C100-114IR
| Description | Part No. |
|---|---|
| Cessna STC, C100-114IR, Front Inertial Reel, Kit (pilot/copilot) | 05-03131 |
Overview
|
Cessna STC Shoulder Harness Kits Cessna Shoulder Harness Kits
|
Specifications
Cessna 200 Series- Shoulder Harnesses can be added to Cessna 200 series aircraft that do not currently have factory installed attachment points. See “Minor Change Kits below”
- Shoulder Harnesses can be added to Cessna 177 and 177A aircraft that do not currently have factory installed attachment points
- Cardinal 177, 177A and Cessna 200 Series aircraft can add 3-Point Diagonal Shoulder Harness for the pilot & co-pilot positions by the incorporation of a "MINOR CHANGE" Installation Kit. This kit includes the necessary hardware items and instructions to complete the installation using an existing air-frame nut plate as the anchor point. The installation of 3-Point Diagonal Shoulder Harness assemblies, using the "MINOR CHANGE" Installation Kit, will require a log book entry by an A&P. This is hardware only. The restraint Assemblies (Shoulder Harness and New Lap Belt) need to be purchased separately.
- With existing factory installed equipment, or a previous minor change installation; the Minor Change Kit will not be required; the aircraft will have existing attachment points that the MC Kit would be creating.
Documents
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Our website will give you the option of which color you would like once you proceed to check out. This part number would only come with one belt. As for which seat it would go to, it is interchangeable so you can use this seat belt for either the pilot or t he co-pilot side.

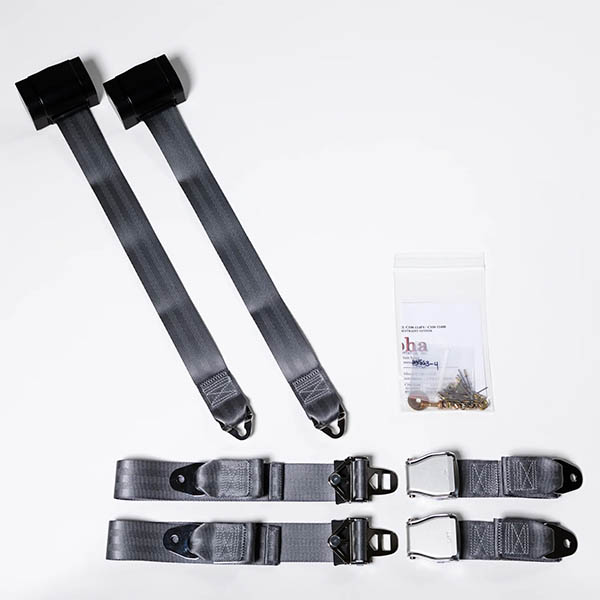

2 (two) single diagonal inertial reel equipped shoulder harnesses - pilot and co-pilot position
2 (two) inertial reel covers
2 (two) lap belts with new buckle and end fittings - pilot and co-pilot position
All required hardware for 2 front seats
Detailed installation manual with drawings
8130-3 airworthiness certificate
Supplemental Type Certificate
STC Authorization
