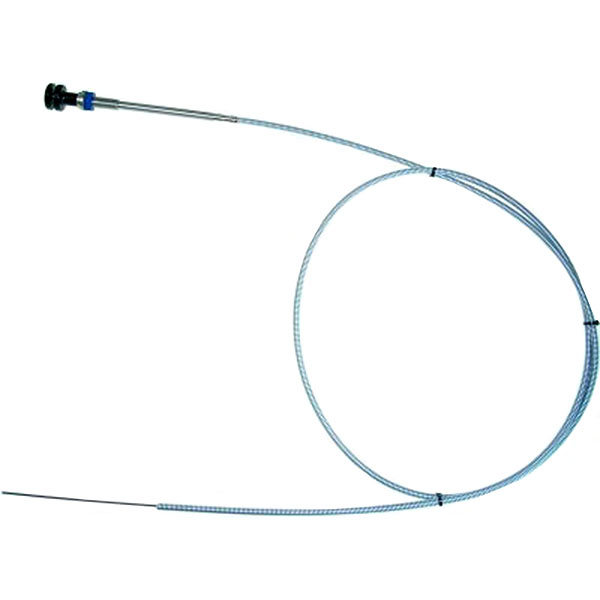

MC6150071BB120 UnLOC Control 10

$111.93/Each
Price Includes GST
Part# 05-04154
MFR Model# MC6150-071BB120

Overview

Perfect for homebuilt or custom projects.

Available in 4, 6, 8, 10 and 12 foot - May be trimmed to length.

  • Quality stainless steel construction
  • Teflon™ lined for smooth operation
  • 15 lb. locking force
  • Heavy duty 0.071 inch wire for strength and long life
  • 3" maximum travel
Custom laser marking of the knobs as in sample photo is available per knob. Receive a $15.00 discount for each additional knob with the same design.

Specifications

  • Conduit: 0.24 inch OD Teflon lined wound conduit
  • Inner wire: 0.071 inch diameter music wire
  • Travel (stroke): 3 inch maximum
  • Maximum work loads: 25 lbs (Pull), ~10 lbs* (Push)
  • Minimum locking force: 15 lbs
  • Operating temp: -65 to 450 deg F **

Reviews

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Photo says your text here. Is engraving offered on these push to unlock controls? If so, what price?

Yes, the supplier can engrave these with custom text. They are special order and non-returnable, non-cancellable once engraved. Please contact sales at 877-477-7823 to order these controls with custom engraving. Engraving fee is $25 as of May 16, 2013. Sales associate will advise of current fee at time of order.

Q: Regarding the MC 6150 Universal Push to Unlock Controls: What size is the diameter of the knob and what size hole does it require for mounting?

The knob diameter is 1" and the the hole size is 7/16".

Q: What size is the internal cable of MC6150071CC096 control cable, part # 05-04492?

The internal cable diameter is .071".

Q: What is the outside diameter of these cables?

1/4 inch

Q: Which Cable Safe can be used with this cable?

Use part # 05-16252 Cable Safe II for this 1/4" housing.

Q: What is the panel hole size for this MC6150 control?

The threads measure .43 so approx 7/16.
