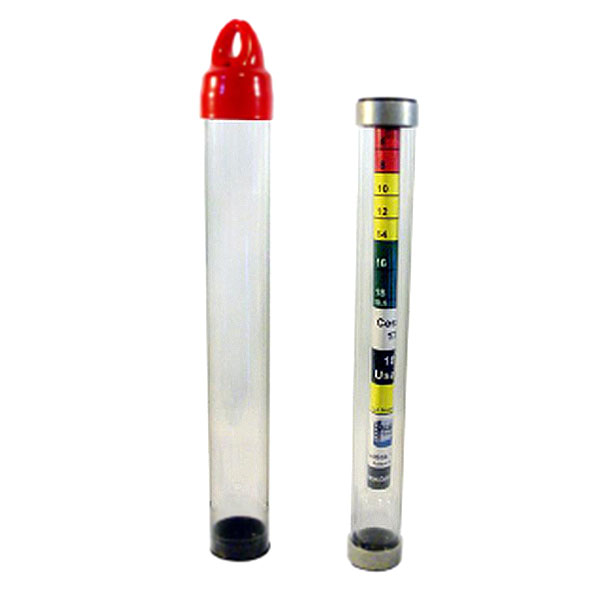

FuelStick RV RV8, 21 Gal.
| Description | Usable Fuel Tank Size | Part Number |
|---|---|---|
| RV RV8 | 21 Gal. | 05-13085 |
Overview
|
Extremely light, high impact plastic tubing with aluminum rings resist damage. Available "Aircraft Specific Scales" Can be downloaded and printed from the website. Can easily be calibrated to any tank using the "Universal" scale. A worksheet, written instructions and even an instructional video are available at the website. We will generate an "Aircraft Specific Scale" from your calibration
It's shipping tube doubles as a "Vented Storage Tube". This allows any remaining fuel to evaporate between uses, provides a protection for the life of the unit and reduces manufacturing waste. It's design gives consistent readings even when the fuel in the tank is sloshing around. It's upper and lower rings aide in handling. Large Easy-to-Read numbers observed outside the tank. Quantities given in both Gallons and Pounds! Color coded sections represent approx. 1/3 cruise consumption. It's not limited to your aircraft. Works in tractors, small motors, etc. Will not fall into fuel tank on most aircraft. 100% Made in the USA  |
Specifications
- Device Size- 10 3/4 In (273 mm) X 1 1/4 in (32mm)
- Shipping Tube size- 12 5/8 (320 mm) X 1 1/2 (38 mm)
- 38g Device Only, 82 g with shipping tube/ documents
- Construction: Fuel Resistant Plastic, Aluminum
Documents
- Calculator Worksheet (PDF)
- Calibration Instructions (PDF)
Videos
Reviews
Big but works well
Verified Purchase
FuelStick RV RV8, 21 Gal.
WORKS GREAT VERY ACCURATE
Does what its supposed to do. Calibrated for my RV8 tanks right out of the box. Since the fuel level sensors in the tanks only read up to 14 gallons, this gives a good way of seeing how much is in each tank from 14 to 21 gal.
Verified Purchase
FuelStick RV RV8, 21 Gal.
Works as advertised. However, they dont tell you that the range is only 10-21 gallons.
Don’t waste your money. Doesn’t read any quantity below 10gal (had I read the reviews, I’d have seen this no one to blame but myself). So, the Stik is useless below half-gas…which is probably where you need a reading the most.
Verified Purchase
FuelStick RV RV8, 21 Gal.
Total disappointment. Scale doesnt read quantities below 10 gal (approx half a tank)...when below 10 is probably one of the more critical quantities to know, especially if wanting to stay within the lighter aerobatic gross weight envelope. But the joke is on me. Had I read the other reviews, Id have discovered this, that the scale only reads from 10-21 gal...could have saved my money.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
These do not need to be calibrated, they are pre calibrated for the specific aircraft when ordered. You can change the scale out in these though to use them with different aircraft, those scales would need to be calibrated.
No there is not.
