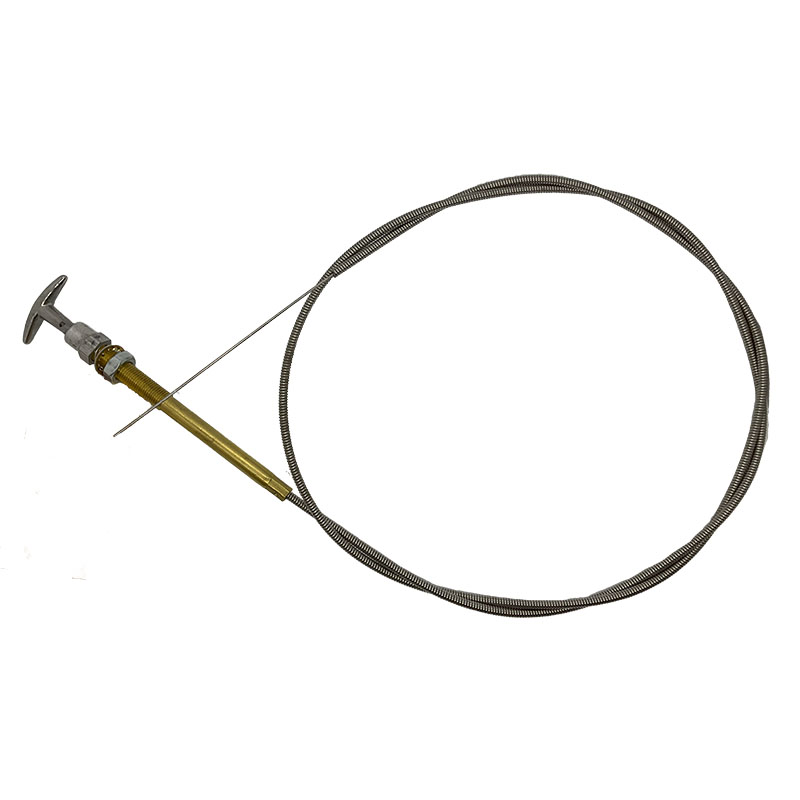

T-Handle Dash Control 1 Wire 8
MFR Model# 36200046
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
T-Handle dash control manufactured of duralumin and brass. Locks positively, will not vibrate loose. One-fourth turn locks it in any position and will hold up to 100 lbs. Standard travel 2-1/2". T-handle is 1-3/4" wide. Can be mounted from front or rear of instrument panel. Complete with wire and casing which may be shortened.
05-15000 5’ CABLE Mounting Thread: 7/16-20 Wire/Cable Diameter: .054” Cable Housing Diameter: .190” 05-15100 8’ CABLE Mounting Thread: 7/16-20 Wire/Cable Diameter: .072” Cable Housing Diameter: .215” 05-15200 12’ CABLE Mounting Thread: 7/16-20 Wire/Cable Diameter: .072” Cable Housing Diameter: .215” |
Reviews
Nice construction and excellent finish. Has added feature of locking T-Handle.
They don’t show it in the photo, but the T handle has “(LOCK)” with arrows instead of parentheses, cast into the face. Also, if the cable needs to be routed with some bends in it, the push-pull action can get pretty stiff, so you wouldn’t want to use it for something requiring fine adjustment, like a mixture control. For open-close and on-off, these work very well, for they are ruggedly built. If you need to cut the Bowden cable housing, remove the inner cable BEFORE you do! A wee cut-off wheel in a Dremel works really well for this.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The wire / cable diameter is .054 and the cable housing is .190.
The handles on the controls are silver.
This t-dash handle control weighs approximately 0.57 lbs.
That has a solid wire end.
It is not threaded. It is installed with a roll pin and cannot be removed easily.
The T is 1-3/4" wide. You would need a hole slightly bigger than 7/16 and there is no keyway.
Yes, the inner cable and handle can be pulled out of the housing.
