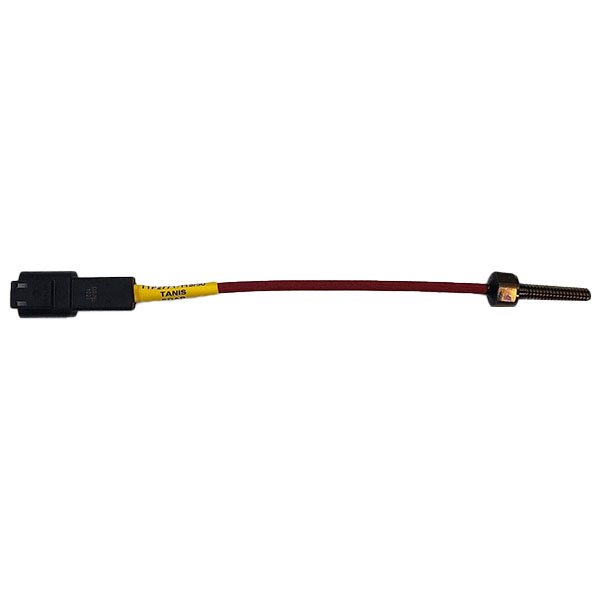

Tanis Tt02634 Threaded Heat Element - 115V

$187.00/Each
Price Includes GST
Part# 05-22003
MFR Model# TA02634-1

Overview

Tanis TT02634 Threaded Heat Element 50 Watt/ 150 Volts. The 2634 series threaded heat element is designed to replace the Lycoming oil sump screen holder. These threaded heat element replacement parts are used with a complete Tanis preheat system.
A 2652 series Pad heat element may also be used alternately. Included with this replacement element is one AN900-16 “Crushwasher”

Notes

  • Conversion Notes: To use new element on old harness you may need to convert harness with TCP2598 per instruction TN02594.
  • Specifications

  • Watts: 50 Watt
  • Voltage: 115 Volt
  • Material: Brass
  • Threaded area: 1.0-20 UNEF
  • Depth into sump: 1.375 inch max
  • Head: 7/8 inch hex
  • Total length of bolt body: 1.75 inch
  • Lead length: 6 inch
  • Connector type: Socket

    Cautions:*Torque is to follow Lycoming’s recommendations.*For use only in Lycoming sumps as screen holder replacement.
