Set No. | Spring Width (in.) | Hole Dia. Fuselage End (in.) | Hole Dia. Tail Wheel End (in.) | Distance Between Bolt Centers (in.) | Orig. App. | Wt. Lbs. | No. of Springs | PN |
---|---|---|---|---|---|---|---|---|
4 | 1-1/2 | 3/8 | 3/8 | 14-7/8 | Home builts | 1-3/4 | 1 | 06-14500 |
FAA/PMA approved subcomponents. Individual for a PA-17 however NOT approved for a PA-15.
(*)= Multiple bends |
Can be drilled with a good drill bit
Tailwheel Leaf Sprng#4 056-4
worked great. arrived as ordered
Tailwheel Leaf Sprng#4 056-4
Worked great for my Starduster Too.
Tailwheel Leaf Sprng#4 056-4
Exactly what I needed for my all aluminum taildragger. A perfect fit.
Tailwheel Leaf Sprng#4 056-4
Tailwheel Leaf Sprng#4 056-4
This is the only spring that I could find that was a good fit for my Junior Ace build.
Worked perfect and arrived as promised.
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part # 06-14200 has 3 leafs.

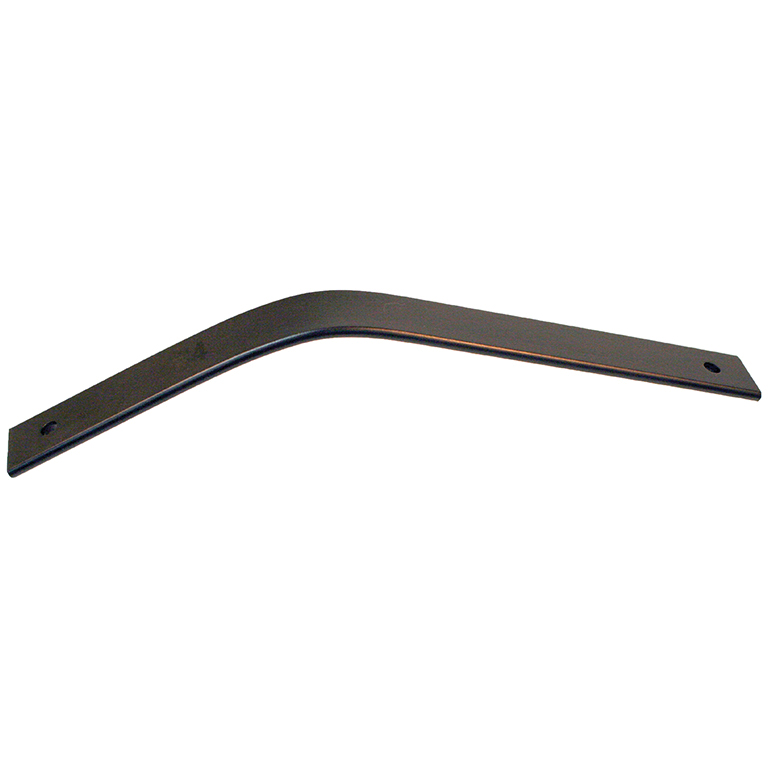

Part # 06-14500 Approx Dims: 1/4" thick, 5056 alloy
.262 thick, 1-1/2" wide
15" center to center, 16-7/8" overall length
Approx 1.8 lbs.
It is 13" center to center measured along the outside of the curve.
These are made of 5056A aluminum alloy. It does contain magnesium.
