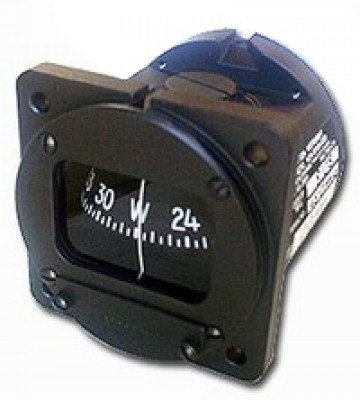

Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
MFR Model# C2300
- JUMP TO
- Overview
- Accessories
- Reviews
- Q&A
- View in Catalog
Overview
Factory-new Airpath compasses as used in almost all production aircraft. 2.25" size.
|
Reviews
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
The new compass fit perfect and the markings are much easier to see than the original version in my L-19, now it just needs to be trued up
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
exactly as advertised and arrived sooner than expected.
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
I received the wrong parts and had to send them back .Then i got the compass i wanted but it came with an extra mount that I did not need I had to send the wrong mount back and had to wait to get credit for the wrong and un needed parts !!
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
A replacement for the made in China product which I purchased only a few years ago. This Airpath compass appears to work as advertised. It has been swung and adjusted in the usual manner. No problems. I should have done this the first time instead of going the cheap route.
The compass was delivered on time and was exactly what I had ordered. Compass was installed on a glare shield mount in a Grumman AA1-A Trainer and works perfectly.
Flawless
This was an easy install and an exact replacement for the original compass in my aircraft. It compensated easily and is as good as it gets for a whisky compass.
Card and holder are included, but no instructions or printed matter at all.
Verified Purchase
Airpath C2300 Panel Mount Compass Non Lit North Hem TSO
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
FAA: TSO-C7c
This compass weighs approximately .56 lbs on its own.
Part number 10-03140 does not have the threads for mounting the screw in the center as this is a panel mount compass. Part number 10-01341 does have the 2 wires that come from the top of the unit.
The C2300 compass fits in a 2.25 hole and needs 3 inches of clearance from behind the panel.
Per the manufacturer: Yes, the compass fluid for the C2300 series airpath compass is included inside of the unit.
Yes, it does come with the mounting screws and nuts required.
Part number 10-08100 is a kerosene based fluid.
No, the unlighted Airpath Compass does not require a power source for operation.
No, they must be ordered separately. Please see P/N: 10-01659 for the card and P/N: 10-01658 for the holder.
Part number 10-01341 does have the 2 wires that come from the top of the unit. These wires are bare at the end and will need to be swung after install.
