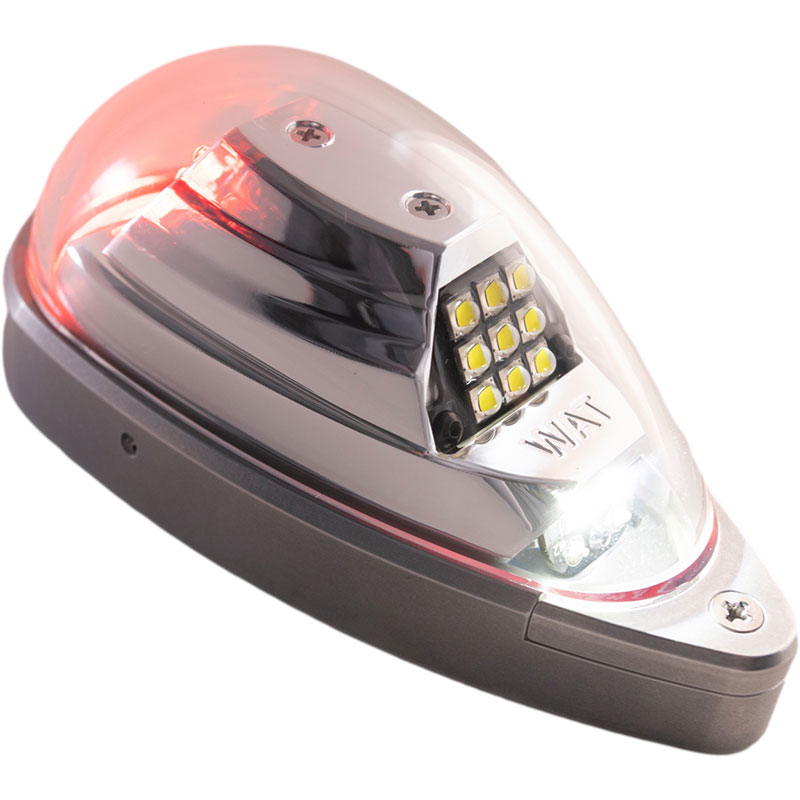

Whelen Orion 660 LED Wingtip Pta 28V Red OR6602R

$676.50/Each
Price Includes GST
Part# 11-18780
MFR Model# 01-0790877-12
Model Num.DescriptionWhelen #ApprovalsPN
OR6602RRed Forward Position, Anti-Collision & Tail Light Assembly, 28 VDC01-0790877-12TSO-C96a Class III / TSO-C30c Type I & III 11-18780

Overview

The Orion 660 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO approved.

Specifications

  • Drawing 90725
  • Weight 0.26 lbs
  • Current Draw 12V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
  • Lenses Clear Hardcoated Polycarbonate

Drawing

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Light is great very bright, however bird strikes will more than likely cause damage not as tight to the wing tip as I would like installed on airtractor passenger planes would be five star

Garrett G Verified Purchase

Whelen Orion 660 LED Wingtip Pta 28V Red OR6602R

March 25, 2023

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are the Orion 660 LEDs Fully FAA/TSO approved?

The Orion 660 LED series is fully TSO approved. Please reference individual row data for the model number to determine specific TSO approval.

Q: Can both strobe and position light on the Orion 660 be powered from same circuit and wire?

The strobe and position lights are run off separate wires. The strobe would typically need a 3 amp breaker and position a 1 amp.

Q: I have the old A650 on my 152. Must I remove the power supply in order to use this or can the strobe wire still be run through the power supply?

The strobe on 11-18777 cannot be run through the power supply. You would need to remove the power supply and wire this light to ships power.
