Dzus Grommets GA5-312

$2.37/Piece
Price Includes GST
Part# GA5-312
MFR Model# D4-GA5-312

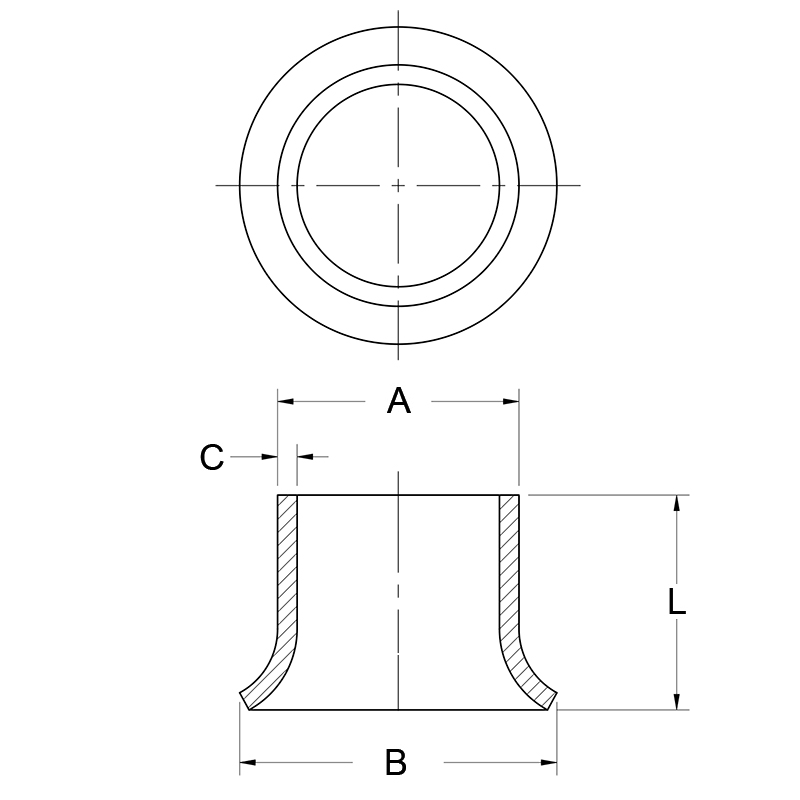

TypeModelOuter Panel ThicknessLengthABCPart No.
GA1271-5312.031 - .062.312.374.500.028GA5-312

Overview

A full grommet is used when protection of the hole is a definite consideration. It protects panel finish and reduces stud play. A tool is required for installation. The "GA" type full grommet is used with a protruding head stud, and the "GF" type with a flush head stud.

Reference Chart

Reviews

worked great, need a tool to install,got one from aiicraft tools

Jeff D Verified Purchase

Dzus Grommets GA5-312

January 4, 2024

Dzus grommets worked perfectly as expected.

Calvin H Verified Purchase

Dzus Grommets GA5-312

July 23, 2023

good Product

John L Verified Purchase

Dzus Grommets GA5-312

February 10, 2023

Requires special tooling to install, not available at Spruce, but look around for specific press tool.

Daniel C Verified Purchase

Dzus Grommets GA5-312

May 31, 2022

I was in need of the Duzs grommets that I bought from Aricraft Spruce for a motorcycle project that Ive been working for the past couple of years. It has a full road race fairing on it and the fairing sections are held together with Duzs fasteners. In order to remove the Duzs fasteners for painting it destroys the grommets. After some searching on the internet I found the grommets I needed at Aircraft Spruce, at a resonable price. The order was placed and within a few days I had the grommets. Good service, fair price whats not to like???

Neil H
August 10, 2020

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the tool used for installation of these full grommets and do you have it?

These will require a C-Clamp base tool, part number 12-02272.

Q: What grommet is used for a Fj4-35SS fastner?

You can use grommets GF4-125, 150, 175, 200 for this fastener.

Q: What grommet is used for AJ5-30 Fastener?

Full grommets: GA5-312, GA5-350, GA5-375

GP5B plastic grommet or GH5 for aluminum.
