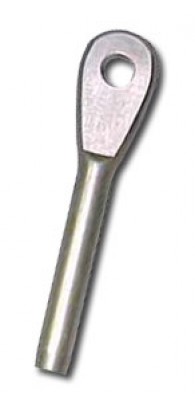

Eye End MS20668-5
MFR Model# MS20668-5
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
| PN | Cable | Strength | Hole Dia | Eye Width |
|---|---|---|---|---|
| MS20668-5 | 5/32 | 2800 | .250 | .197 |
Overview
| The MS20668 Eye End Fittings are manufactured from stainless steel in accordance with the requirements of MIL-DTL-781 and are certified to those standards. |
Reviews
Verified Purchase
Eye End MS20668-5
Correctly advertised. Worked fine.
Quality of this product is great. I needed these as replacements for an existing application that was done incorrectly. Once again, AS has great CS and shipping is always super fast.
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This would need to be swaged onto a cable with a high pressure swaging unit like a Kearney Swager P/N# 12-01188.
The length from hole center to the end is 1.631 inch. These do no use pins, you would loop the cable through them and then swage it. You would want a "Pin eye" if using pins.
MS20668-3 is a swaged fitting for stainless or galvanived cable. MS21254 and 165 are for turnbuckle assemblies, the MS21254 uses the cable clips and the AN165 will need to be safety wired.
