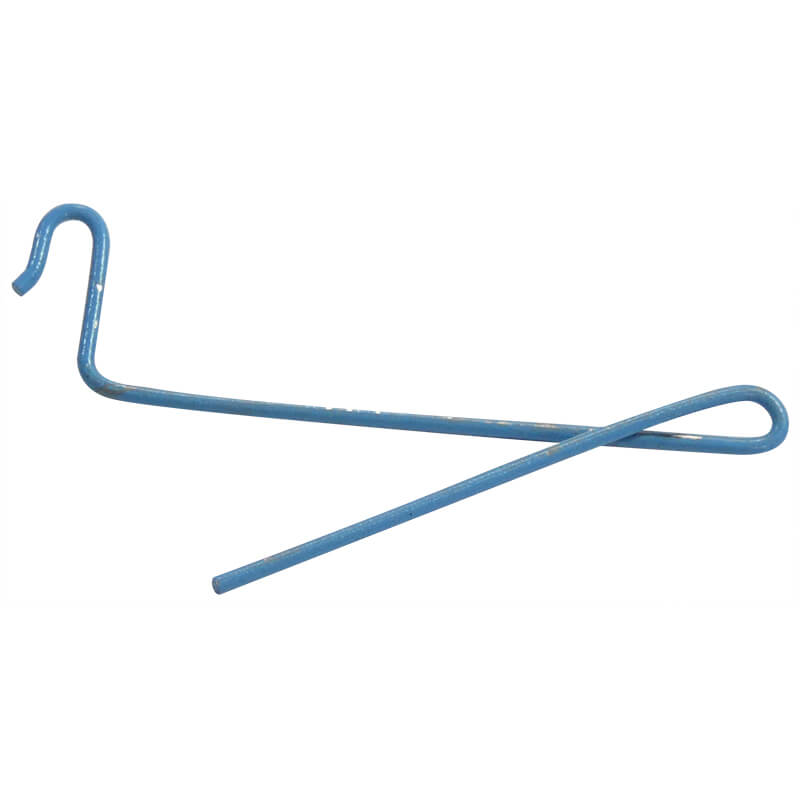

Turnbuckle Clip MS21256-1
MFR Model# MS21256-1
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
|
Turnbuckle Component | Part Number | Cable Dia. | Thread Size | Min Breaking Strength |
|---|---|---|---|---|
| Clip | MS21256-1 | -- | -- | -- |
Overview
|
Clip-Locking Turnbuckles utilize 2 locking clips instead of lock-wire
for safety. The turnbuckle barrel and terminals are slotted lengthwise
to accommodate the locking clips. After the proper cable tension is
reached the barrel slots are aligned with the terminal slots and the clips
are inserted. The curved ends of the locking clips expand and latch
in the vertical slot in the center of the barrel. Build up MS turnbuckle
as sem blies, similar to the AN assemblies listed on the preceding page,
by selecting a turnbuckle barrel, 2 end fittings and 2 clips from the components
listed in the Table below. The price of the complete as sem bly
is the sum of the prices shown for the components. Example: An MS turnbuckle assembly for 3/32" dia. cable, with fork end and pin eye consists of:
1 MS21252-3LS Fork End 1 MS21254-3RS Pin Eye End 2 MS21256-1 Clips Less 15% for 12 or more complete assemblies. Note: MS21256-1 clips are short (1") and MS21256-2 are long (2"). |
Reviews
Sure beats applying the safety wire techniques to a turnbuckle, easy peasy!
Verified Purchase
Turnbuckle Clip MS21256-1
Stock replenishment
Verified Purchase
Turnbuckle Clip MS21256-1
Verified Purchase
Turnbuckle Clip MS21256-1
Delivered promptly.
Verified Purchase
Turnbuckle Clip MS21256-1
To spec. Meets all my requirements.
Verified Purchase
Turnbuckle Clip MS21256-1
These little clips are outstanding and lock up the turnbuckle really solid and safe and look very neat and tidy.
Verified Purchase
Turnbuckle Clip MS21256-1
So much simpler than traditional safety wire.
Verified Purchase
Turnbuckle Clip MS21256-1
Great product
Verified Purchase
Turnbuckle Clip MS21256-1
Worked as it should.
Verified Purchase
Turnbuckle Clip MS21256-1
Verified Purchase
Turnbuckle Clip MS21256-1
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, the MS21251-B5S uses the clips. The S at the end of the part number indicates it is a short barrel, so you would need the MS21256-1 clips.
No. These are the fork only. No other hardware is included.
The hole diameter for the pin is .190". The fork inside diameter is .195" and the fork outside diameter is .383".
The -2 is 2" long and the -3 is 2.25".
Yes, use part # AN161-22RS.
B5S is 2.2" | B5L is 4"
