Clamp MS21919-WdG4

$0.69/Piece
Price Includes GST
Part# MS21919-WDG4
MFR Model# MS21919-WDG4
Tube Dia.Dash No.
DG
Dash No.
WDG
1/4MS21919-WDG4WDG4

Overview

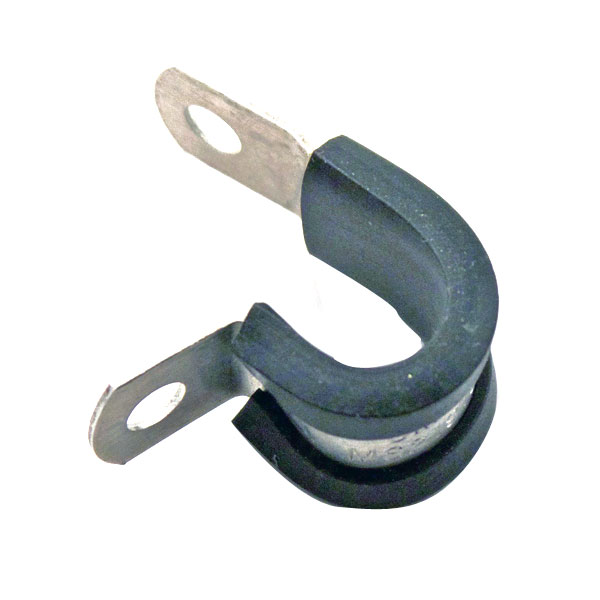

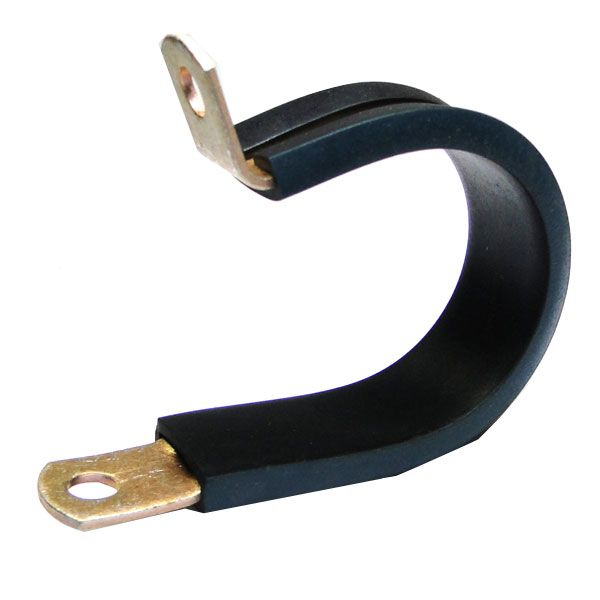

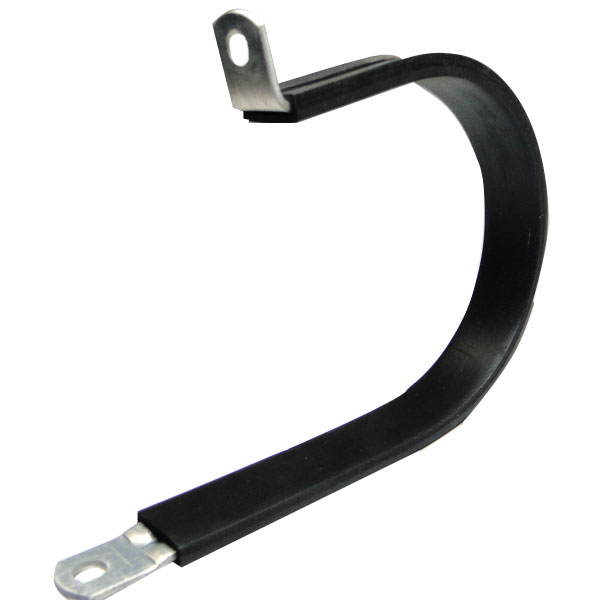

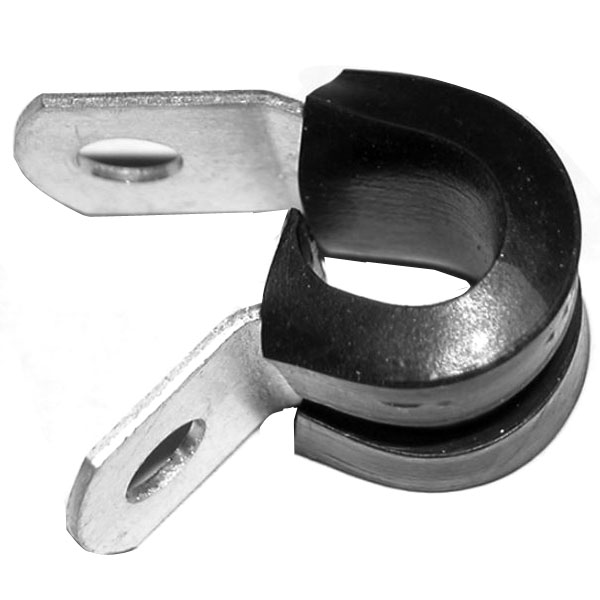

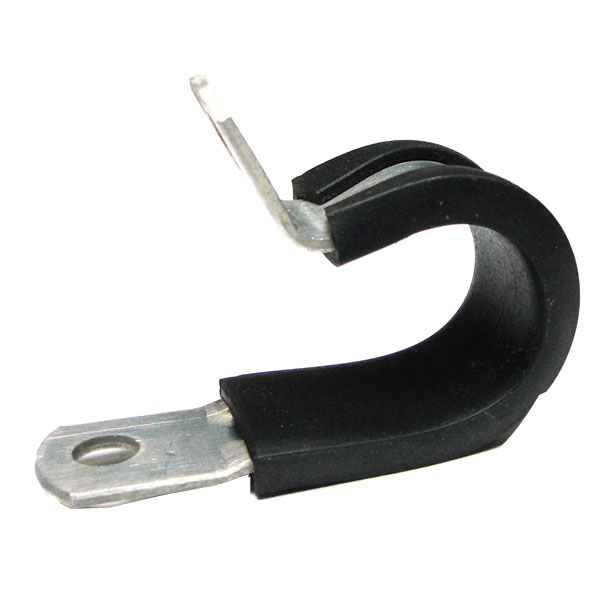

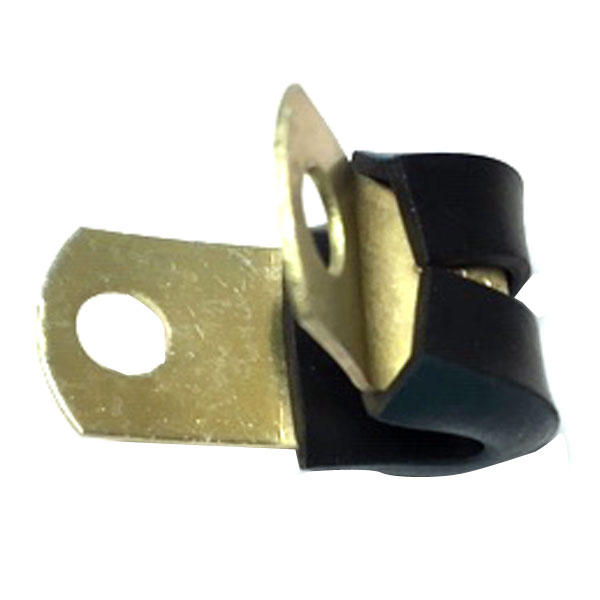

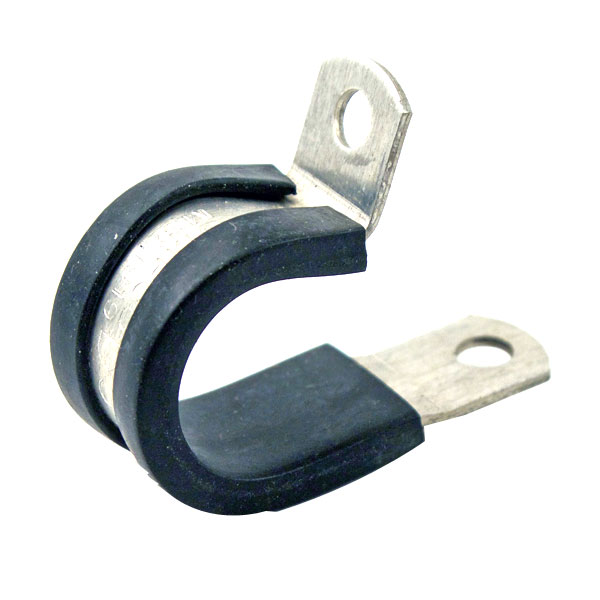

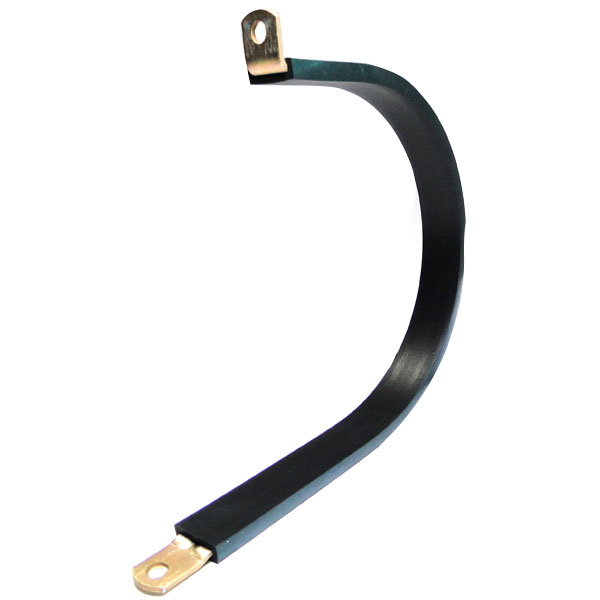

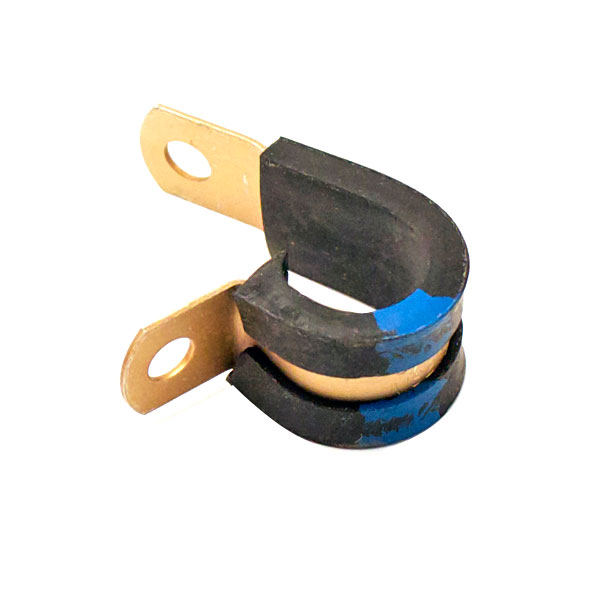

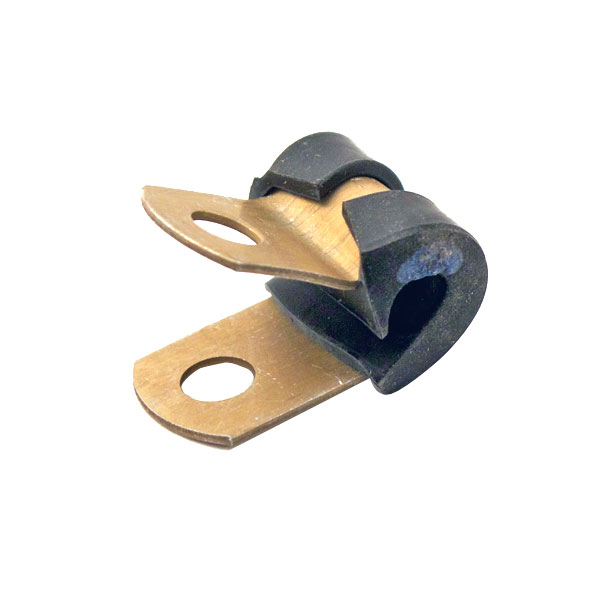

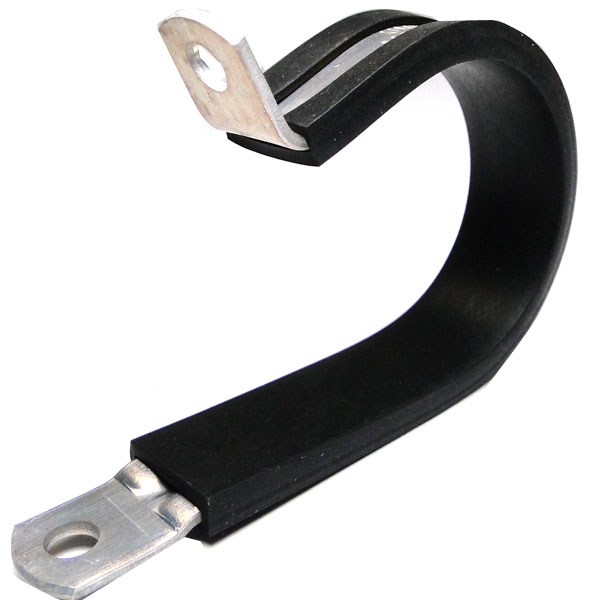

Loop-type cushioned aluminum alloy clamp. Cushion (non-fuel resistant) is bonded to inner surface and edges of clamp. WDG clamps are cushion wedge type. Cushion assures tight fit and eliminates vibration, thus preventing line abrasion.

Note: Revision E only applies to WDG clamps. See Tech Data Sheet.

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Works great fast delivery

Michael J Verified Purchase

Clamp MS21919-WdG4

July 23, 2024

Used on landing gear to attach rigid brake lines to the gear legs. Fit the 1/4” tubing perfectly.

Taylor F Verified Purchase

Clamp MS21919-WdG4

October 8, 2023

John G Verified Purchase

Clamp MS21919-WdG4

August 24, 2023

Good quick service with all items in stock

Bill F Verified Purchase

Clamp MS21919-WdG4

February 20, 2023

Dnt A Verified Purchase

Clamp MS21919-WdG4

August 9, 2022

Worked great.

Absolute A Verified Purchase

Clamp MS21919-WdG4

June 21, 2022

great

Gary
April 10, 2021

As Advertised

Gary
April 9, 2021

Quick shipping and parts were correct.

Jim S
January 27, 2021

Friendly staff and great service.

Douglas W
January 13, 2021

Q&A

Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the difference between DG and WDG Adel clamps?

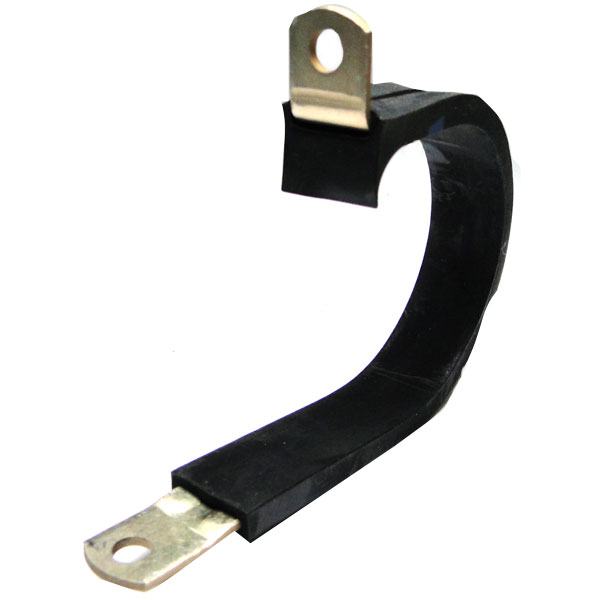

WDG clamps are cushion wedge type clamps. You can see this wedge clearly by looking at the third image (far right) on this web page.

Q: What is the diameter of the mounting holes? Are they all the same?

The diameter tolerance of the mounting holes is .199 through .209 which would require a #10 screw or AN3 bolt. All clamps listed on this web page have the same size mounting holes.

Q: Is there a special tool to help in installing these WDG / DG clamps?

Part number 12-02017 is designed to aid in the install of these clamps.
