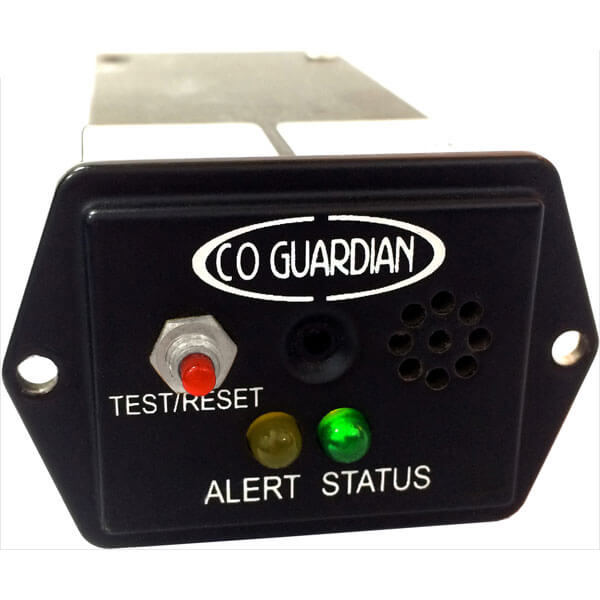

Guardian Avionics Aero 451-101 Panel Mount CO Detector
$578.60/Each
Price Includes GST
Part# 13-21110
MFR Model# 75-25
MFR Model# 75-25
Overview
|
The CO Guardian 451-101 panel mounted Carbon Monoxide (CO) detector is designed especially for FAA certified Part 23 aircraft and Part 27 and 29 rotorcraft. A compact and lightweight unit meant to use as little panel space as possible, the 451-101 combines highly accurate CO detection for the cockpit in a small package. This CO detection unit is perfect for builders and pilots looking for basic protection from the dangers of carbon monoxide in their certified aircraft or helicopter. Installation of the 451-101 is authorized for Part 23, 27, and 29 aircraft/rotorcraft under the Non-Required Safety Enhancing Equipment (NORSEE) authorization and requires only a "Minor Alteration" logbook entry by an IA. The sensitive onboard CO sensor alarms when carbon monoxide levels measure greater than 50 parts-per-million (PPM). A loud 85db aural warning will sound and an amber warning LED will flash when CO measures 50 to 99 PPM over a 3-5 minute span. An aural warning and a red LED flashing warning will trigger when levels climb above 99 PPM immediately when detected. The compact and lightweight CO Guardian 451-101 will fit into a small 2.25 in by 1.5 in instrument position and weighs only 3.5 oz. Installation is very simple and takes only 2-4 hours on average. The 451-101 accommodates a connection to an external annunciator light (sold separately) to add an additional level of safety when the unit is out of view. |
Specifications
- Designed for Part 23 aircraft and Part 27 and 29 helicopters.
- Dimensions: 3.35 in. L x 2.25 in. W x 1.50 in. H.
- Weight 3.5 oz.
- Input Power 14/28 VDC.
- Internal fan for optimum sensing.
- Shielded to prevent EMI (Electro-Magnetic Interference) with aircraft systems.
- Audible alarm with varying pitch at 85 dB.
- LED Red and Amber CO Alert lights. LED Green nominal indication light.
- Temperature ranges 0 °F to 110 °F.
- Built-in Temperature compensating circuit.
