Bogert Universal Big Bogi 04M-Bbu
MFR Model# 04M-BBU
Overview
|

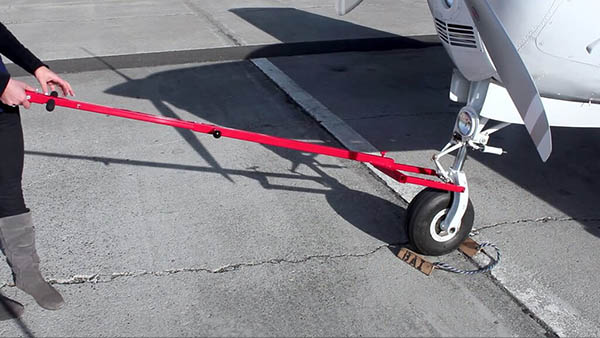

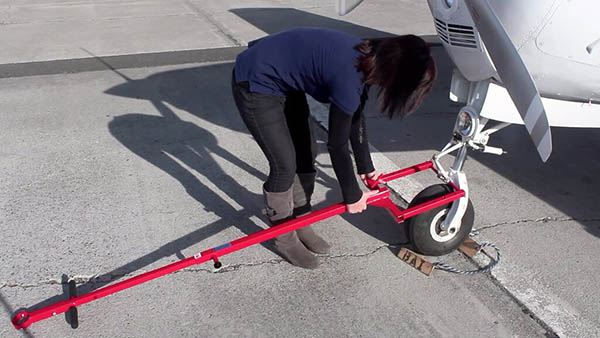

Feet must be ordered to attach to aircraft. See accessories for feet options. The 04M-BBU is unique because it can attach to virtually any aircraft. It has interchangeable “Feet” that can be matched to any aircraft. Each of the “Feet” typically adapts to several models or series of aircraft and several sizes can be carried right on the tow bar. This is perfect for FBO’s that deal with a variety of aircraft or aircraft owners that have more than one plane or shared hangars. “Interchangeable feet sold separately”. |
Features
- No tools required to substitute “Feet”
- Universal Tow Bar carries up to 4 sets of “Feet” at all times.
- Adjustable length makes it easy to hook up to a tug, golf cart, or ATV
- Spring loaded plunger automatically locks the tow bar at the desired length.
- Heavy duty steel construction
- Red Powder Coated Finish.
- Made in the USA
Benefits
- Keeps things simple! One tow bar works on all of your aircraft.
- Saves you money, you don’t need multiple tow bars.
- Protects the aircraft- have the right size to fit the aircraft tow points.
"Feet" Reference Chart
P/N | - For these Models | ACS | |
04M-BBU-F750x2M | Cirrus SR20 & 22 Series—Machined Foot | 12-03174 | |
04M-BBU-F875x275 | Piper PA-22 & PA-28; PA-32 Cherokee Six (w/attachment tabs) | 12-03175 | |
04M-BBU-F1000x2 | Aerostar 601; Bellanca-Viking; Mooney; Piper Comanche PA-24, Twin Comanche PA-30 & PA-39; Piper Cherokee Six (w/tabs broken); Piper Seneca PA-34-200/220/220T | 12-03176 | |
04M-BBU-F1000x2875 | API; GlaStar & Sportsman; Legend Cub; Rockwell 112 & 114 | 12-03177 | |
04M-BBU-F1125x25 | Alaskan Bushwheel; Cessna XP Modification; Scott 3200 & 3400 | 12-03178 | |
04M-BBU-F1500x2 | Diamond DA-40 | 12-03179 | |
04M-BBU-F250x2M | Diamond DA-20—Machined Foot | 12-03180 | |
04M-BBU-F836x2M | Cessna 172RG, 177RG, 182RG & 210 Series; Lance 400 | 12-03181 | |
04M-BBU-F75x3M | Beechcraft Bonanza, 35 | 12-03183 |
Q&A
Please note, Aircraft Spruce Australia's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Australia assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Part number 12-03174 is what you would need to order for a Cirrus.
Yes, you can.
Per Bogert: "Yes. The customer will get their choice between the 04M-BBU-Ring and the 04M-BBU-Clevis. When you purchase the 04M-BBU you get to select one set of BBU feet and then you also get the choice between the ring or clevis. Both items are included in the price of the 04M-BBU."
