Overview

Features

• 3D printed in Red PETG
• References the top of the filler opening to hold stick perpendicular and centered in the opening while taking a fuel reading. This will give you a more repeatable reading and very good to use when setting the K factor value if you have an engine monitor with fuel flow calibration.
• Has flat sides so it will not roll off the wing when set down and also has clearance for fuel cap chains.
• Impossible to drop the stick in the tank when the guide is attached.
• Designed to be used with your existing Fuel Hawk Fuel stick for your airplanes tank configuration.

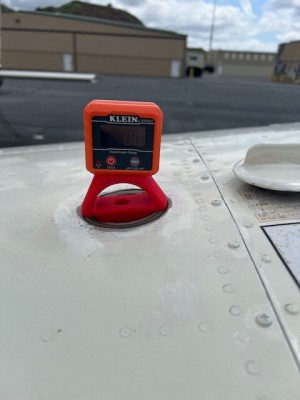

• The Piper PA28 version is designed to negate the 7 degree dihedral and hold the stick vertical while dipping the tanks.
• This is designed for a fuel filler opening that is 2.25″ in Diameter.
• Currently tested on a Piper Archer, Warrior and Cherokee.
• For other Versions of the PA-28 make sure to verify the fuel filler opening is 2.25″ in Diameter and the wing has 7 degrees of dihedral per side. If a special version is required for the Arrow, Dakota or Cadet feel free to contact

In The Box

• Fuel Guide 3D printed in Red PETG.
• 2ea O-Rings used to keep Fuel Guide attached to the Fuel Hawk Fuel Stick. Only one is needed and includes a spare.
• 1ea Use and setup instructions
